Brio Brass Toggle Switch
A knurled brass toggle, and the small click that ends the evening.
- Ready assembled
Free U.S. shippingArrives Sep 30 to Oct 730-day returns1-year warranty
- Made to lastSolid brass and natural stone, backed by a 1-year warranty.
- Free U.S. shippingEvery order, no minimum. 30-day returns if it is not right.
- A real person answersWrite to us with a photo of your cabinet and we will confirm the fit before you order.
Product details
Everything you need to know
Description
A knurled brass toggle, and the small click that ends the evening.

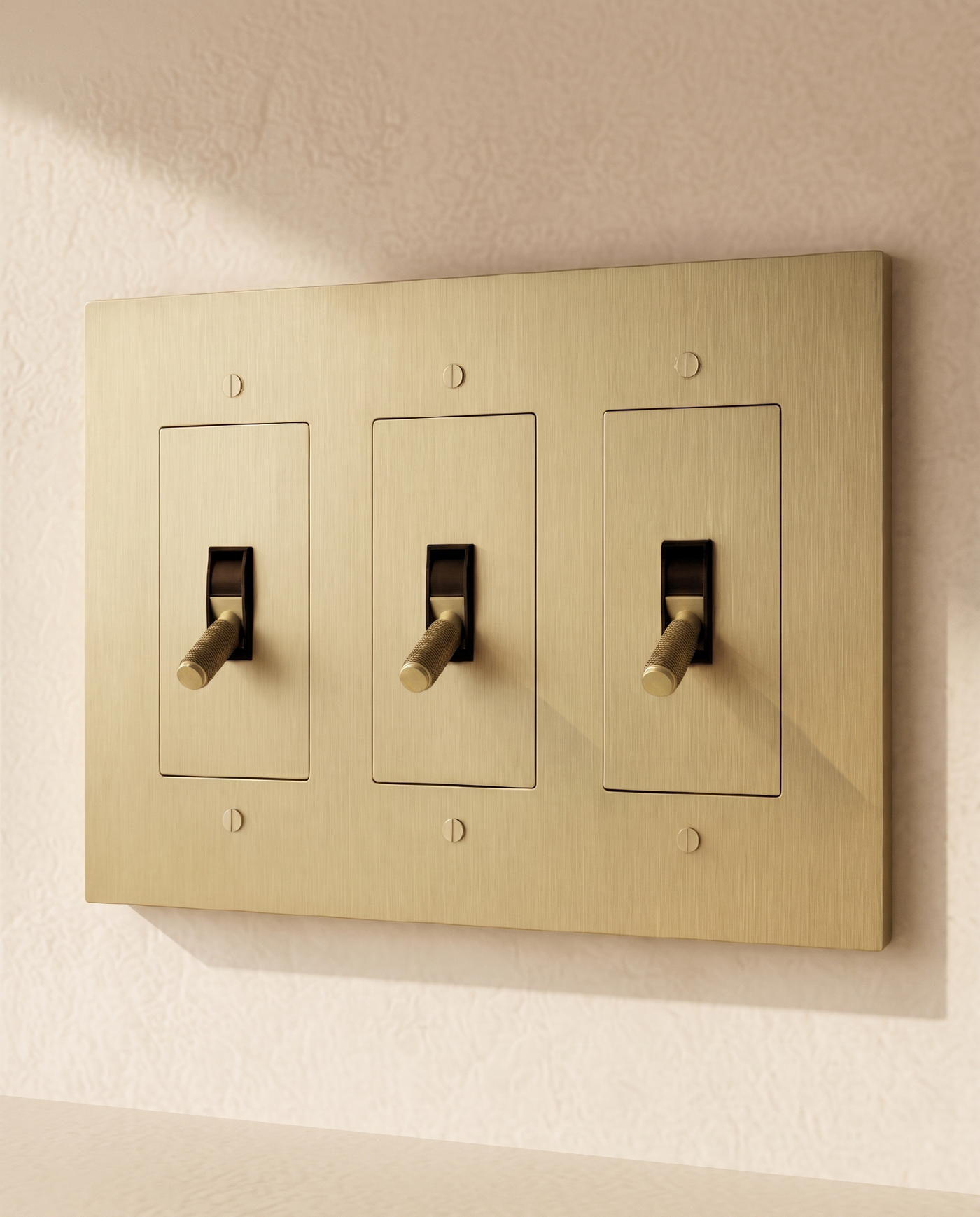

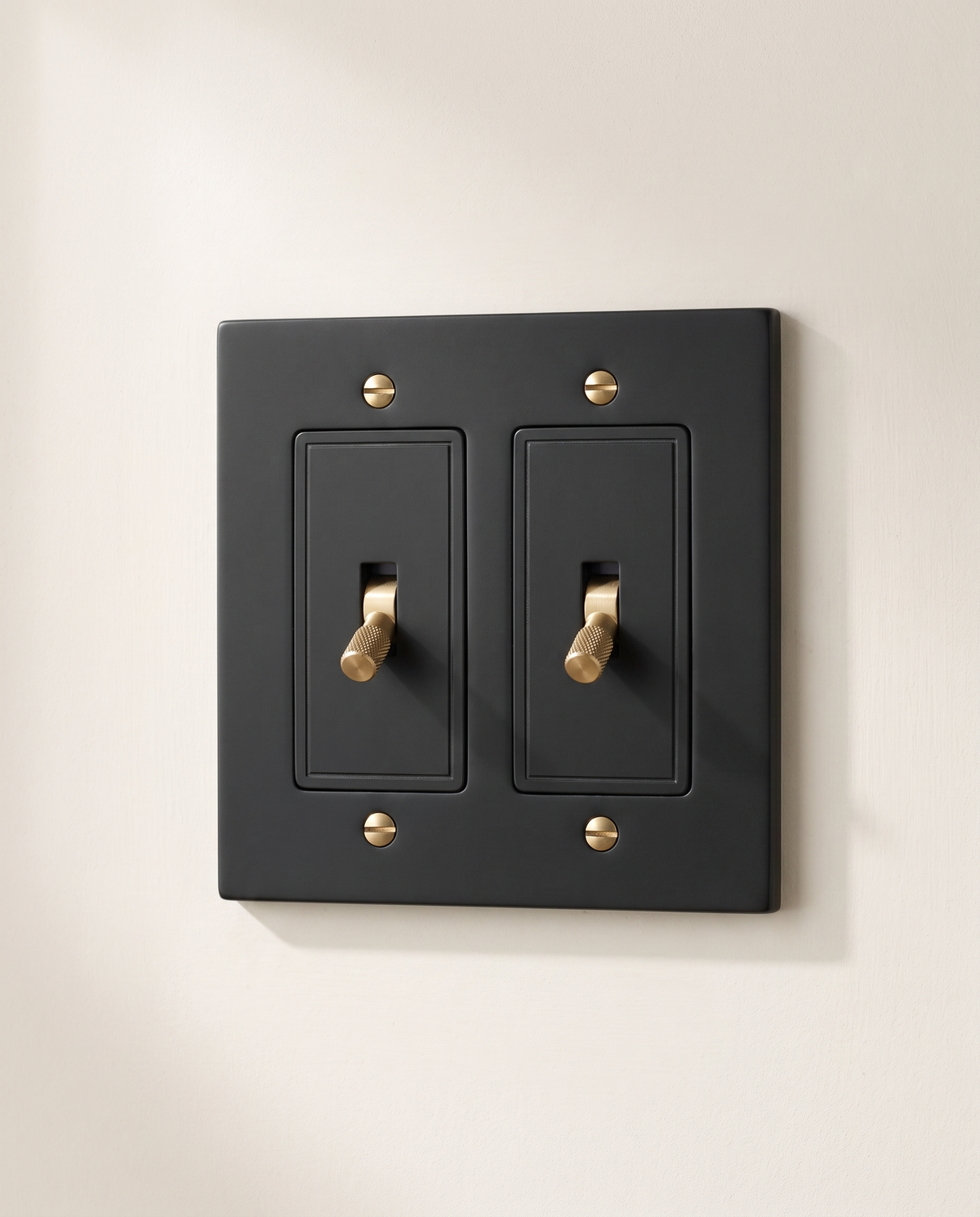

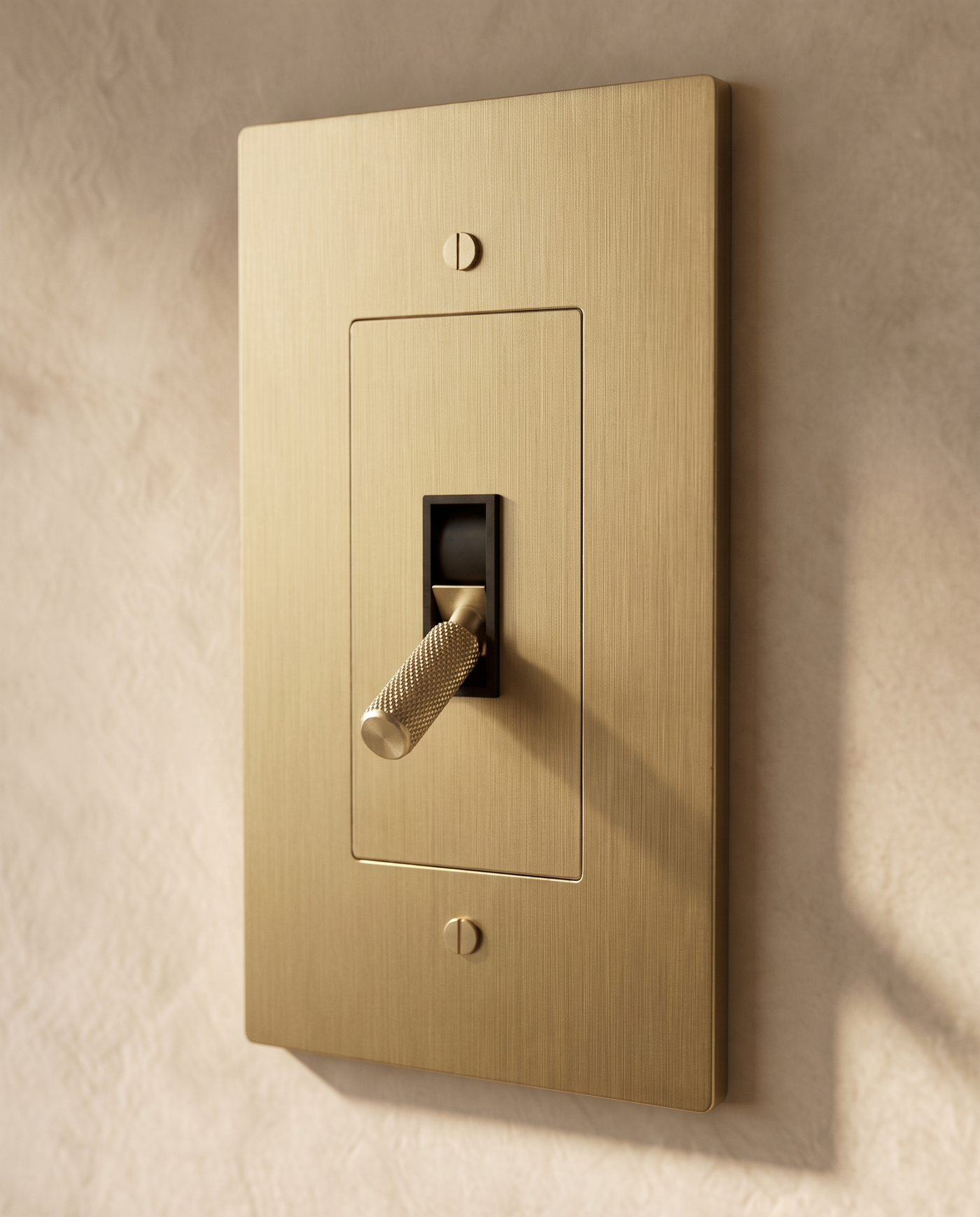

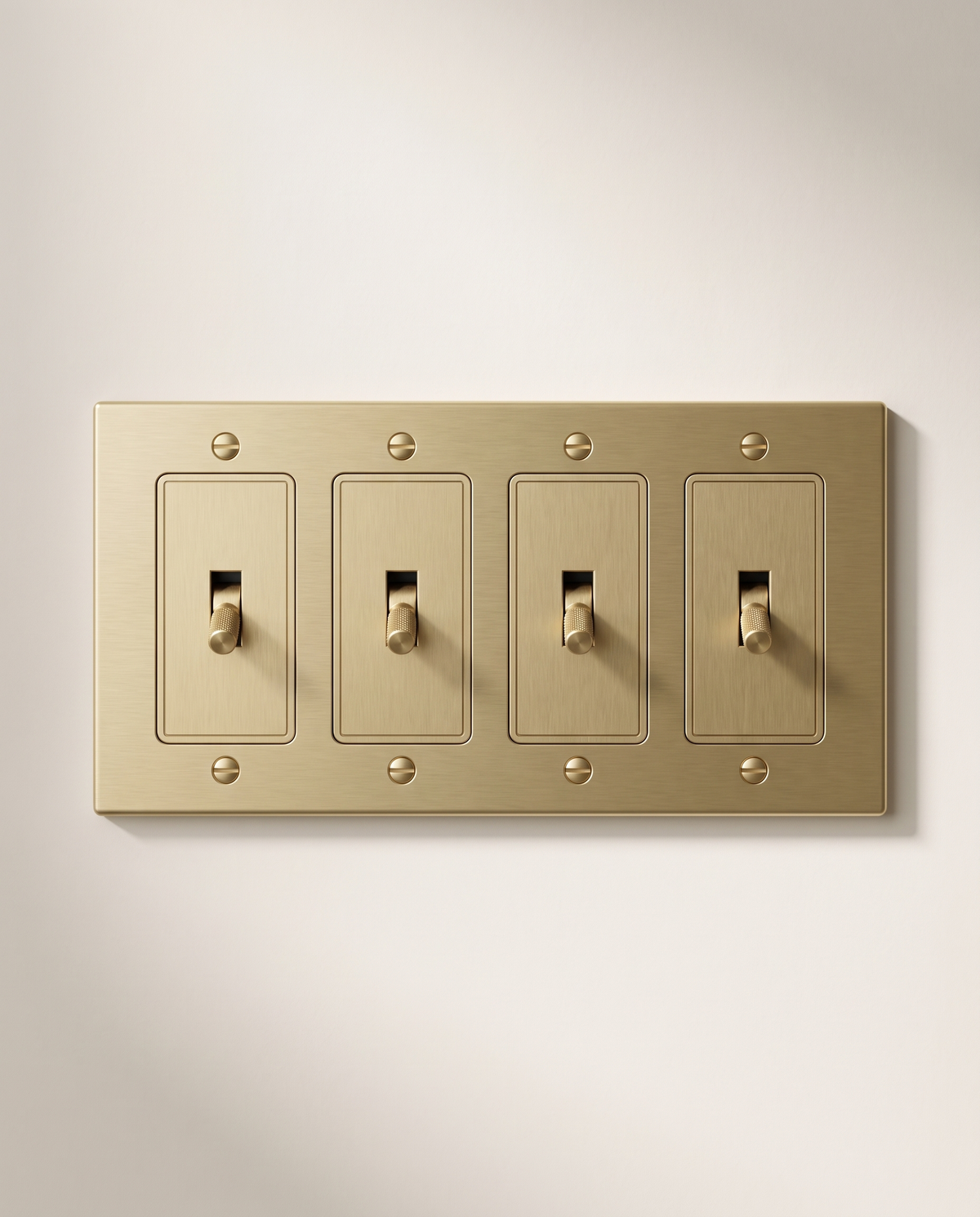

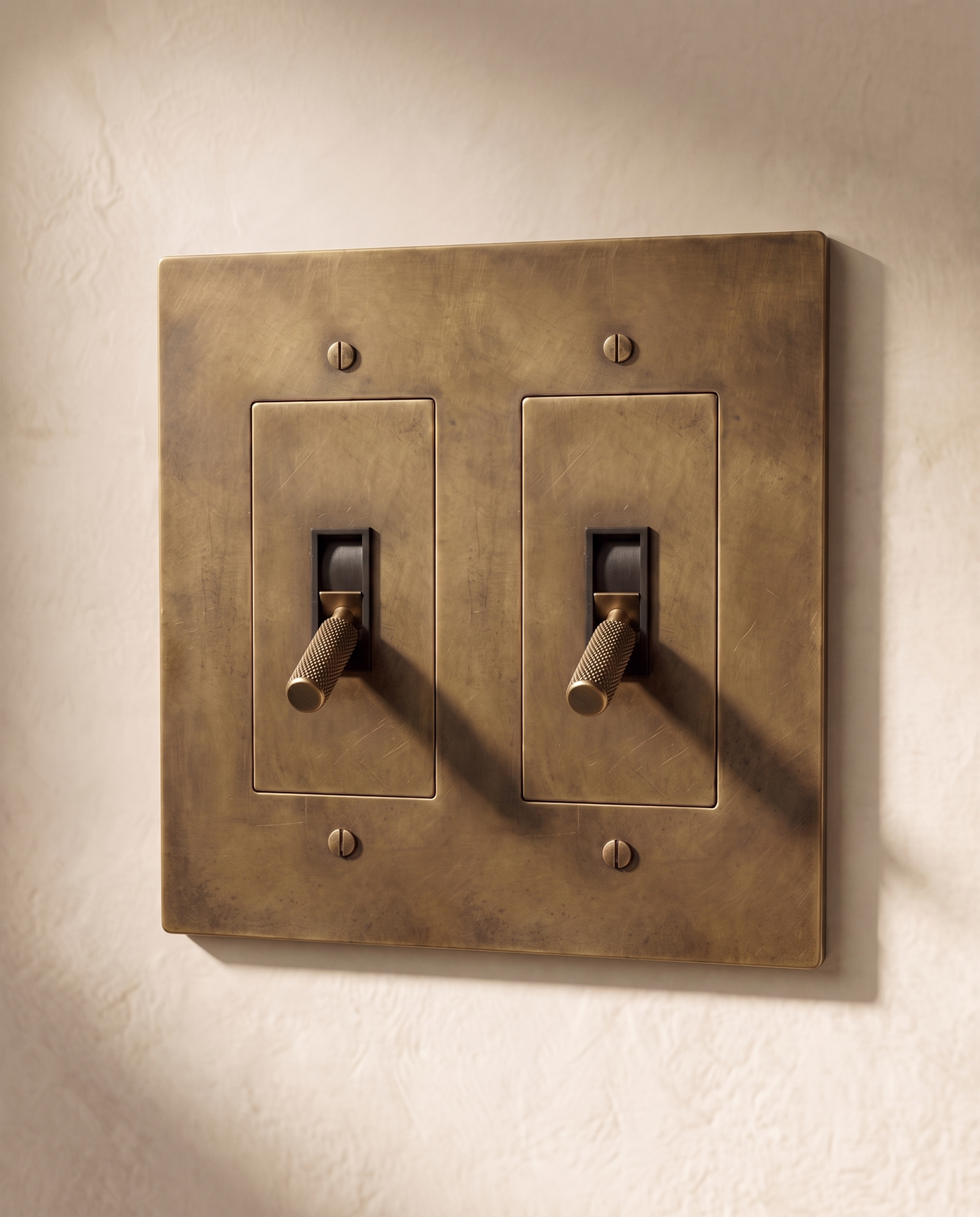

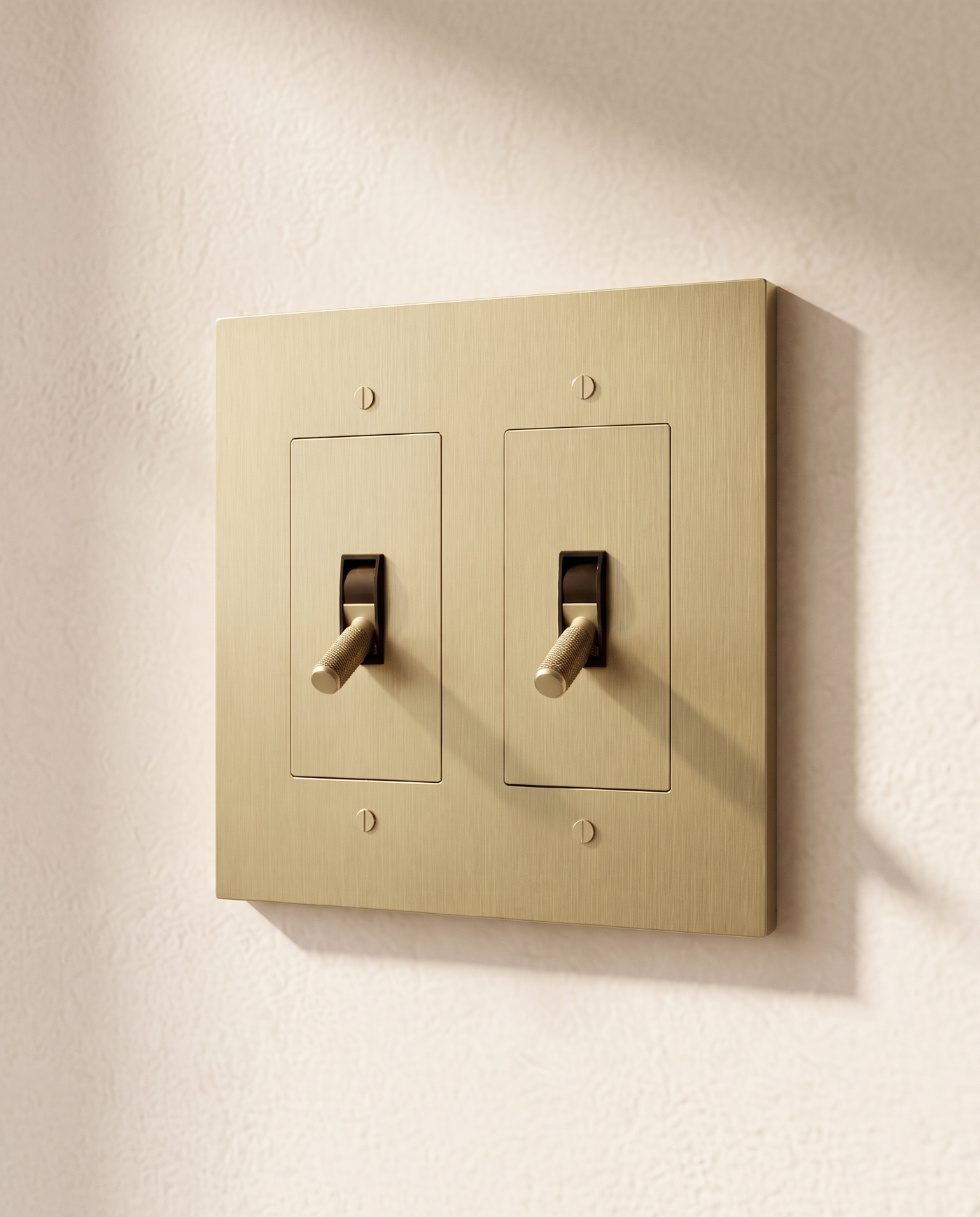

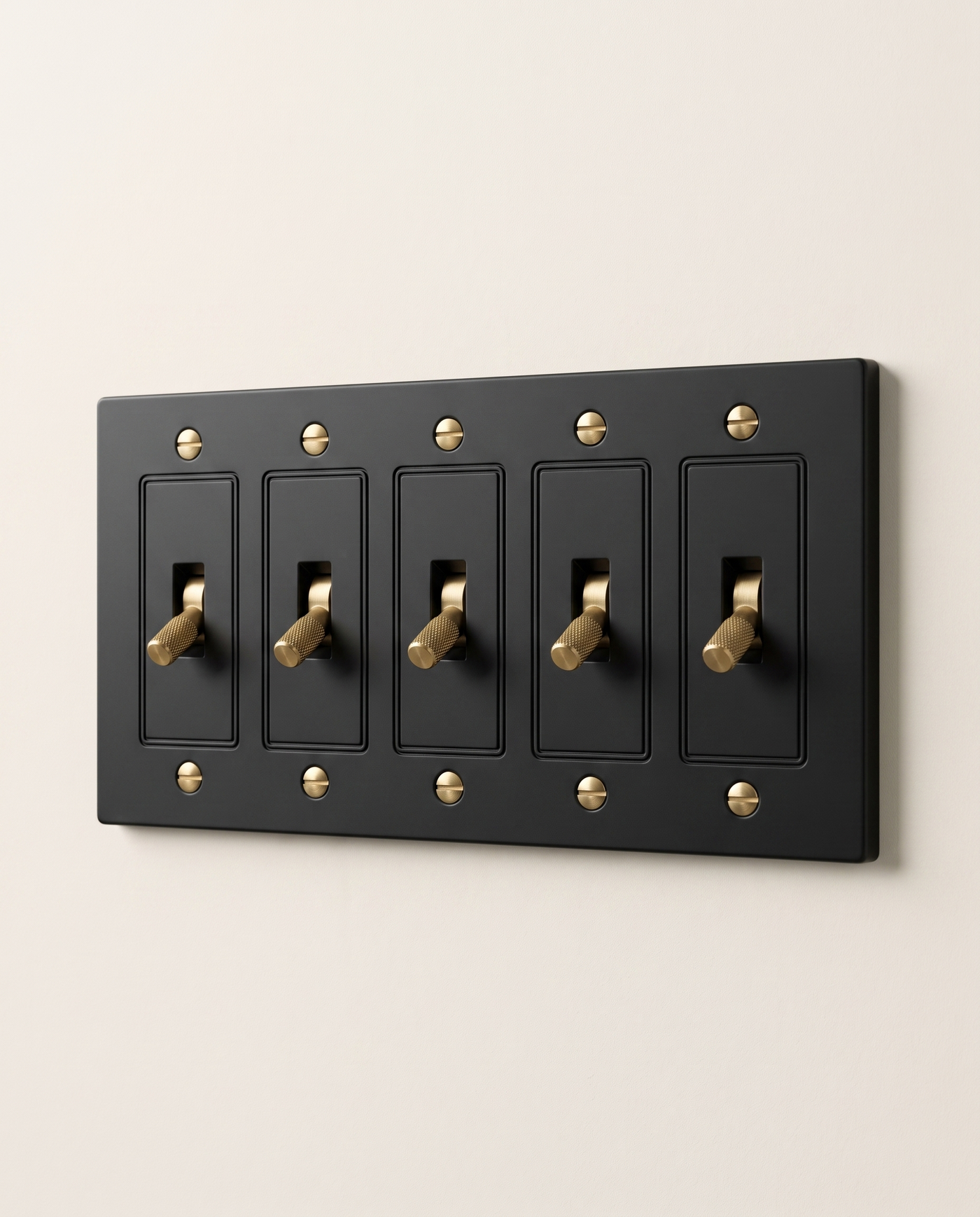

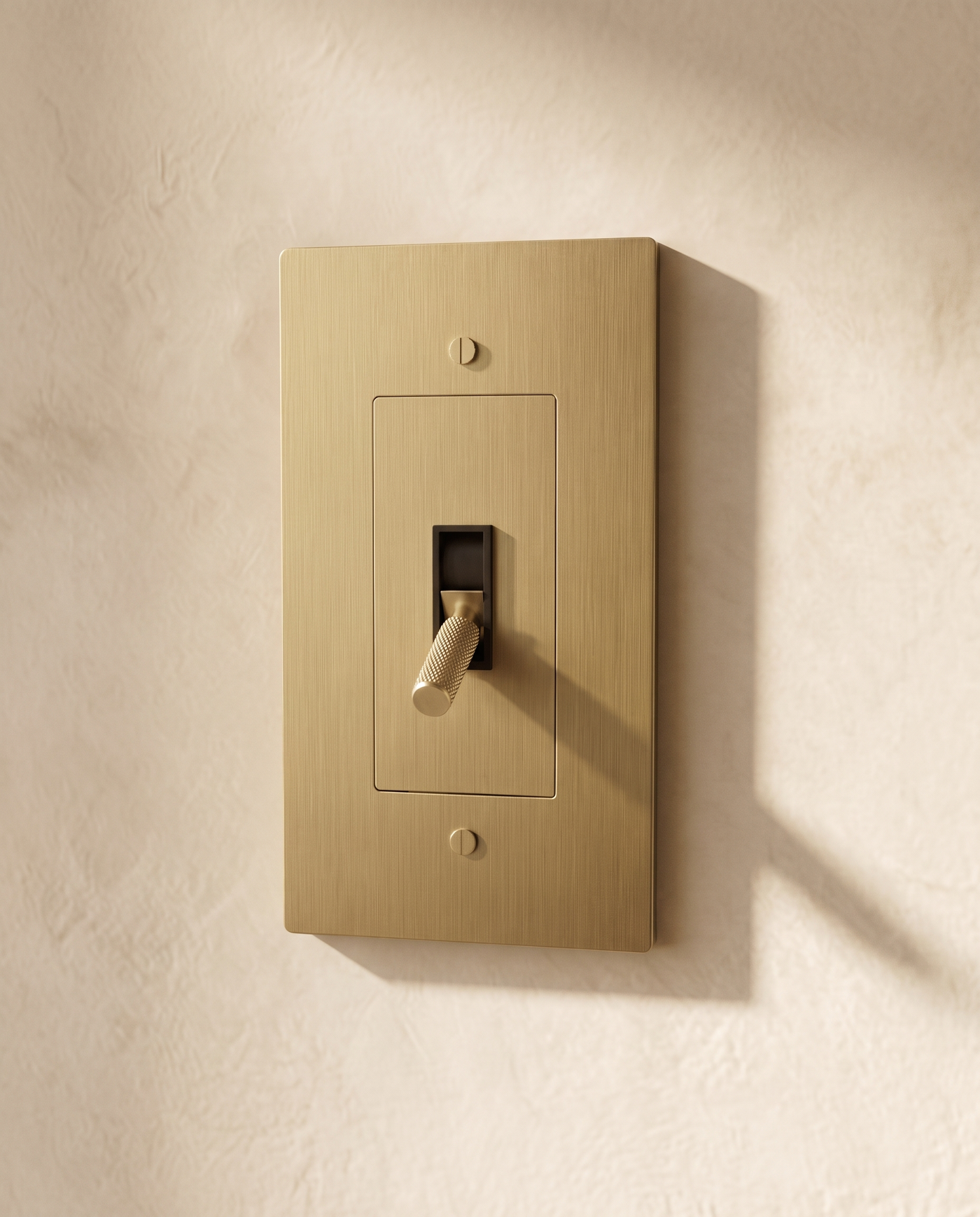

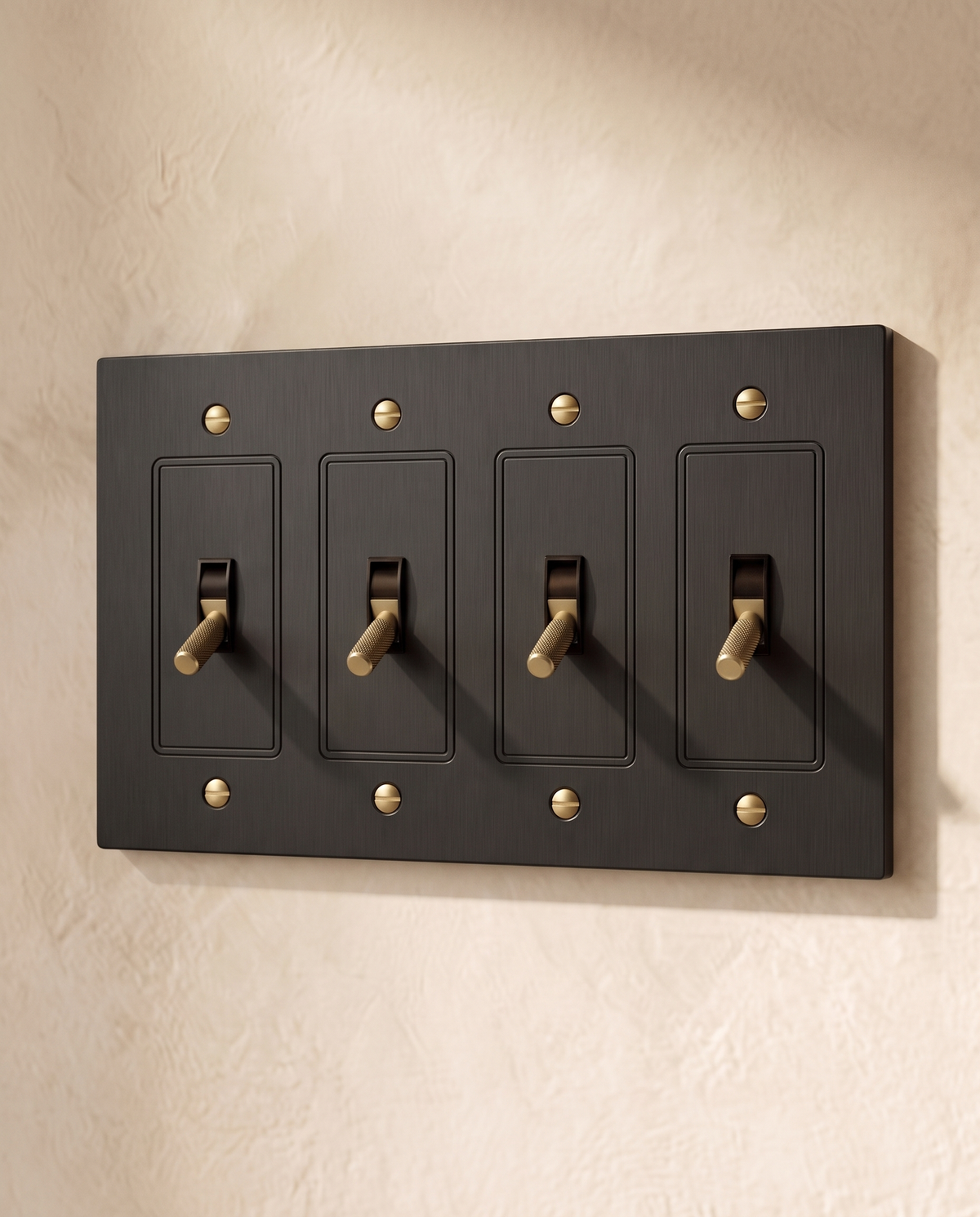

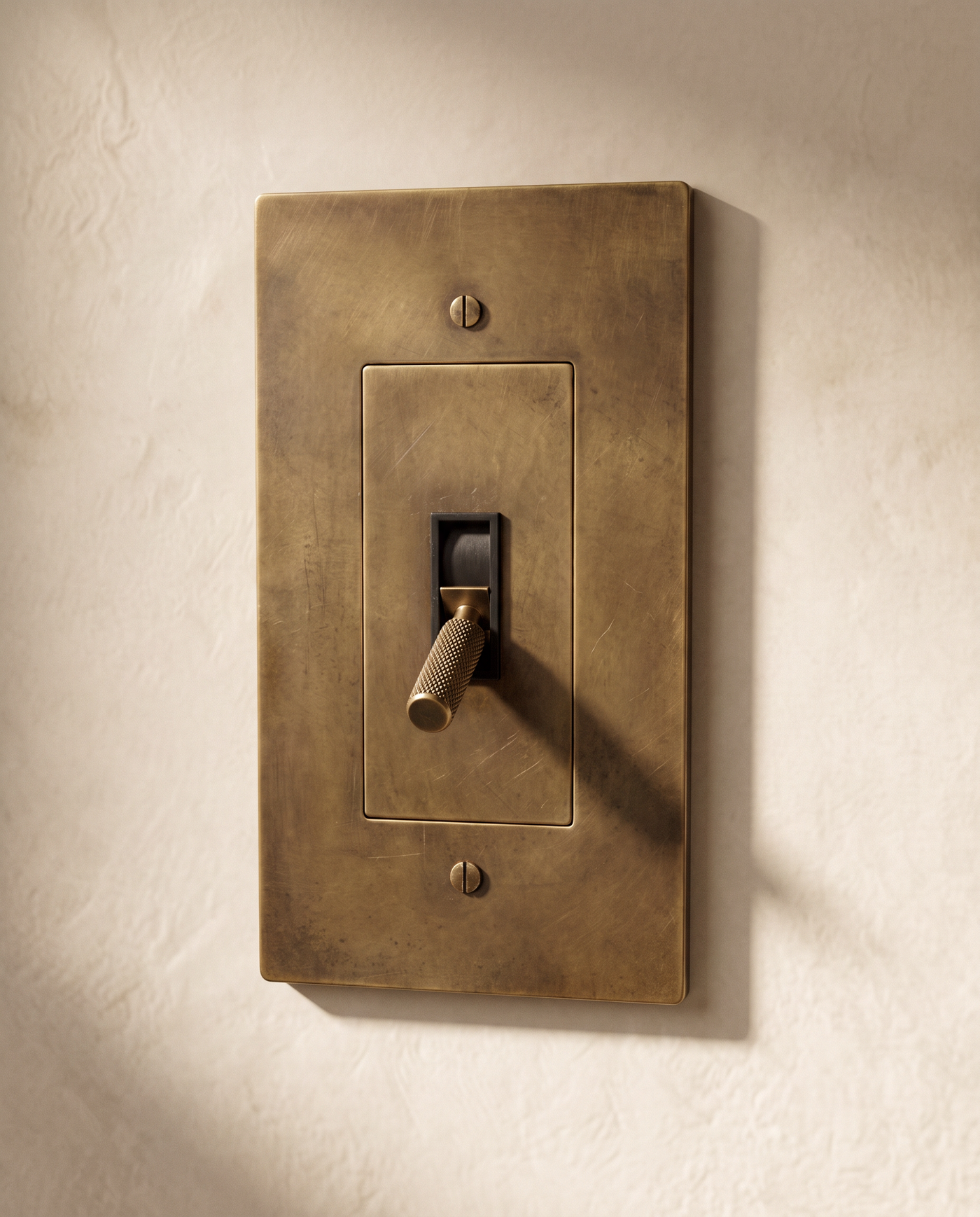

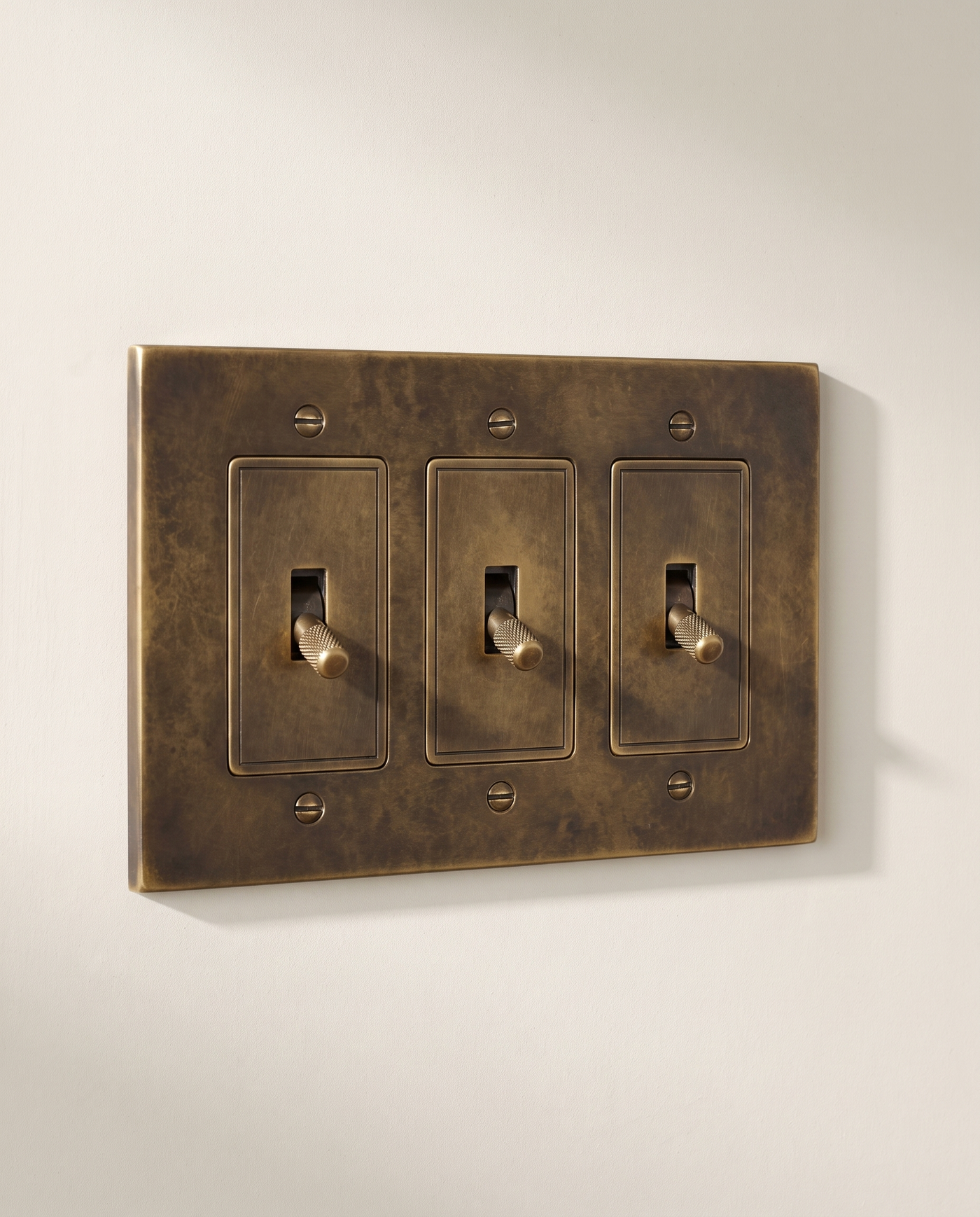

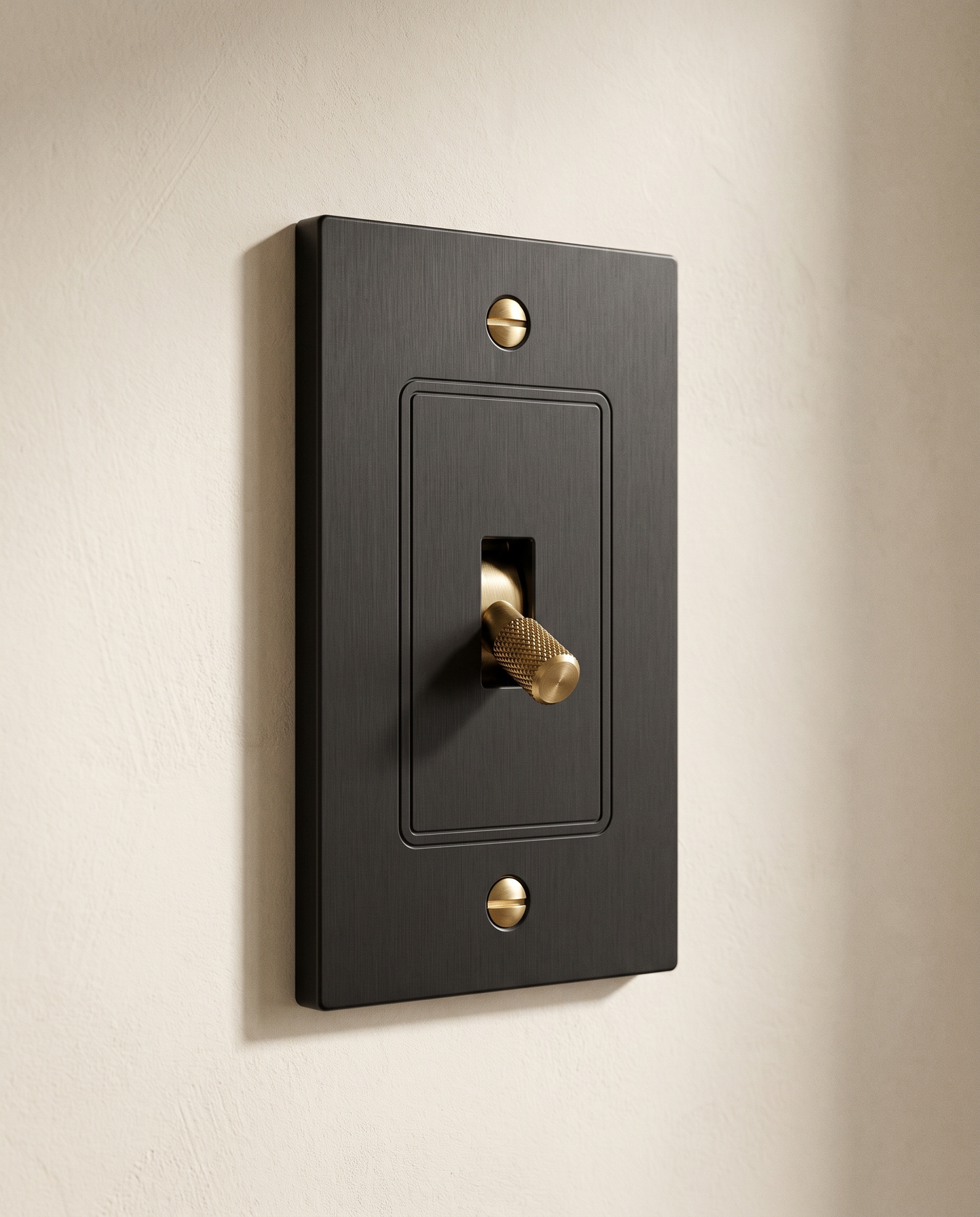

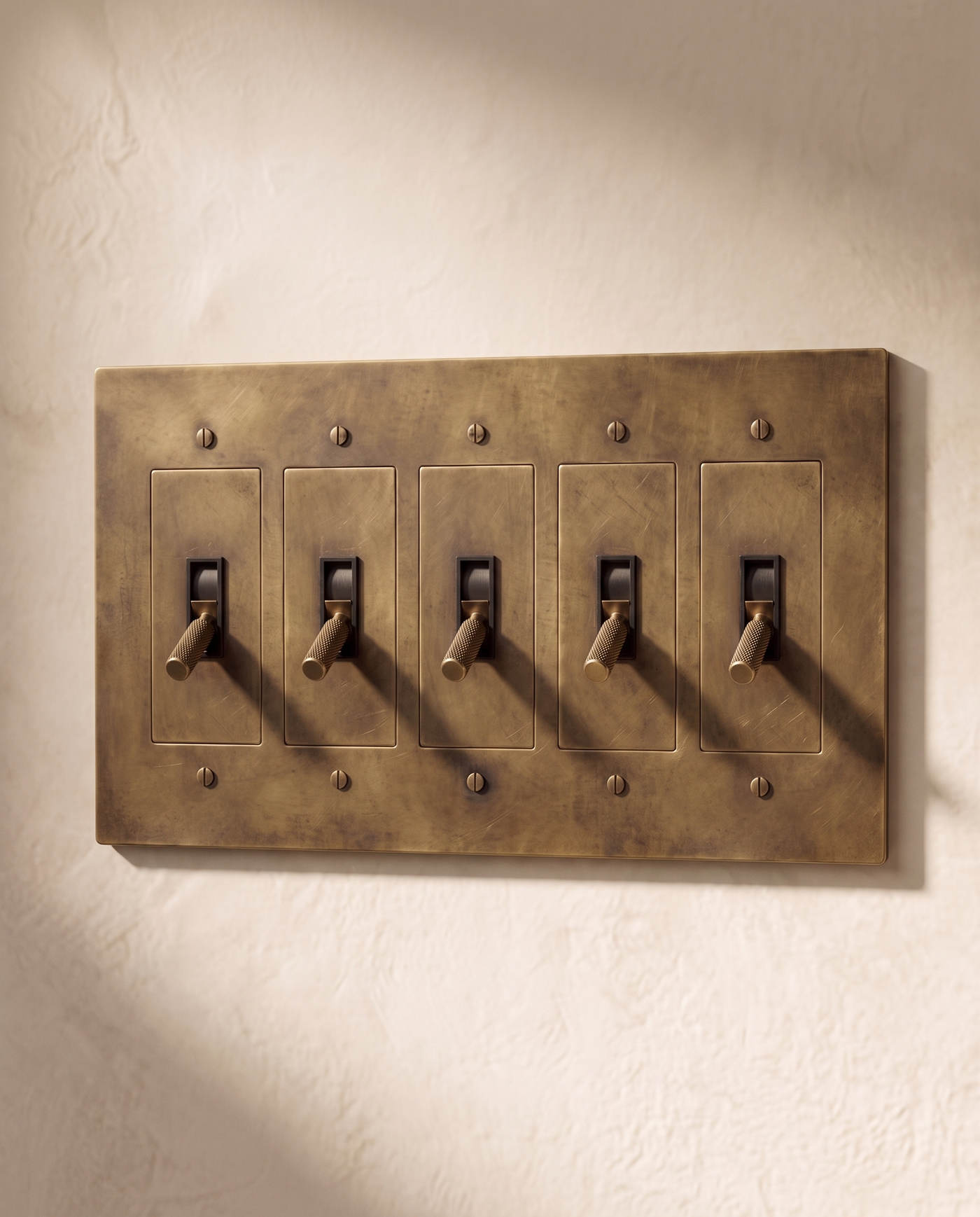

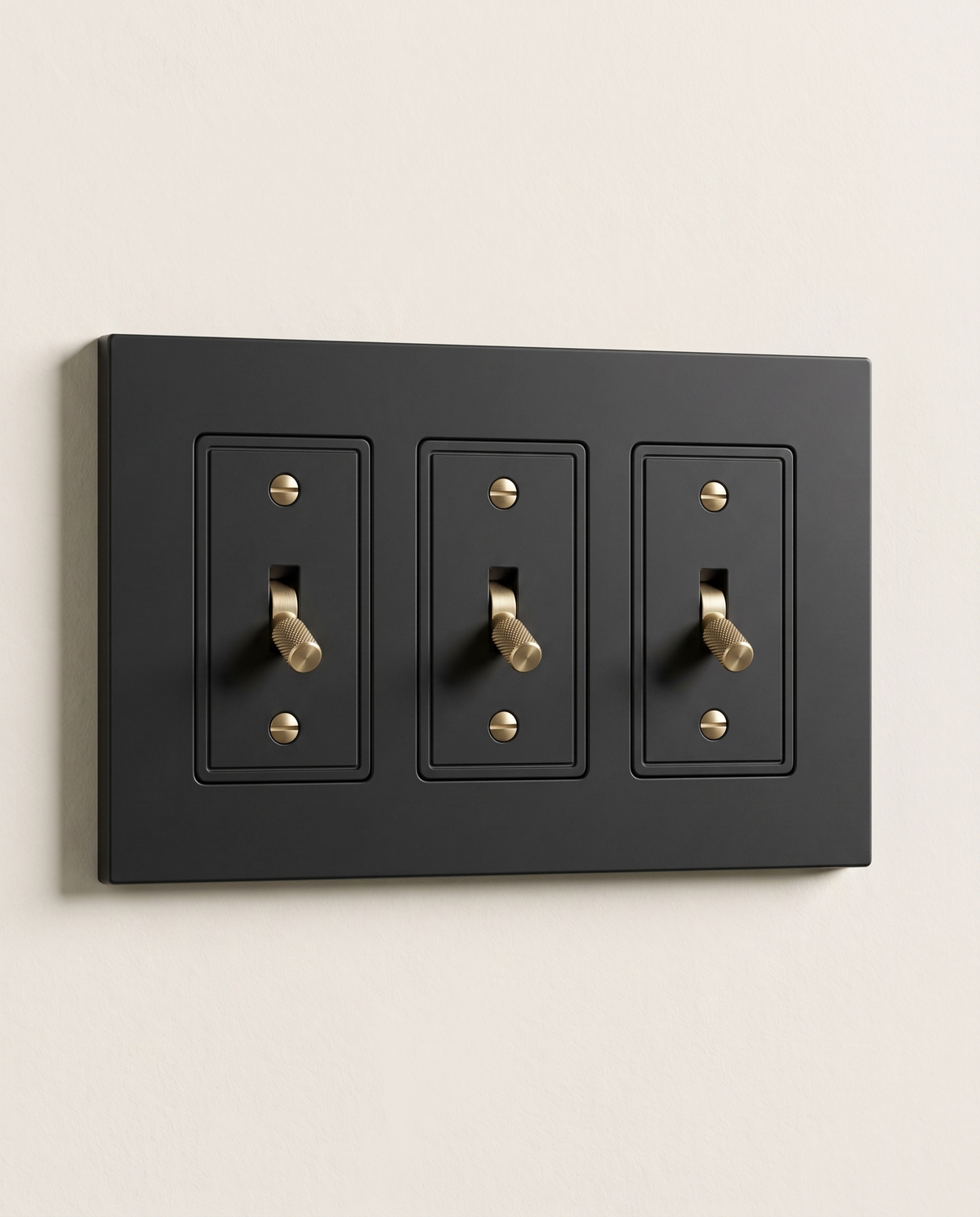

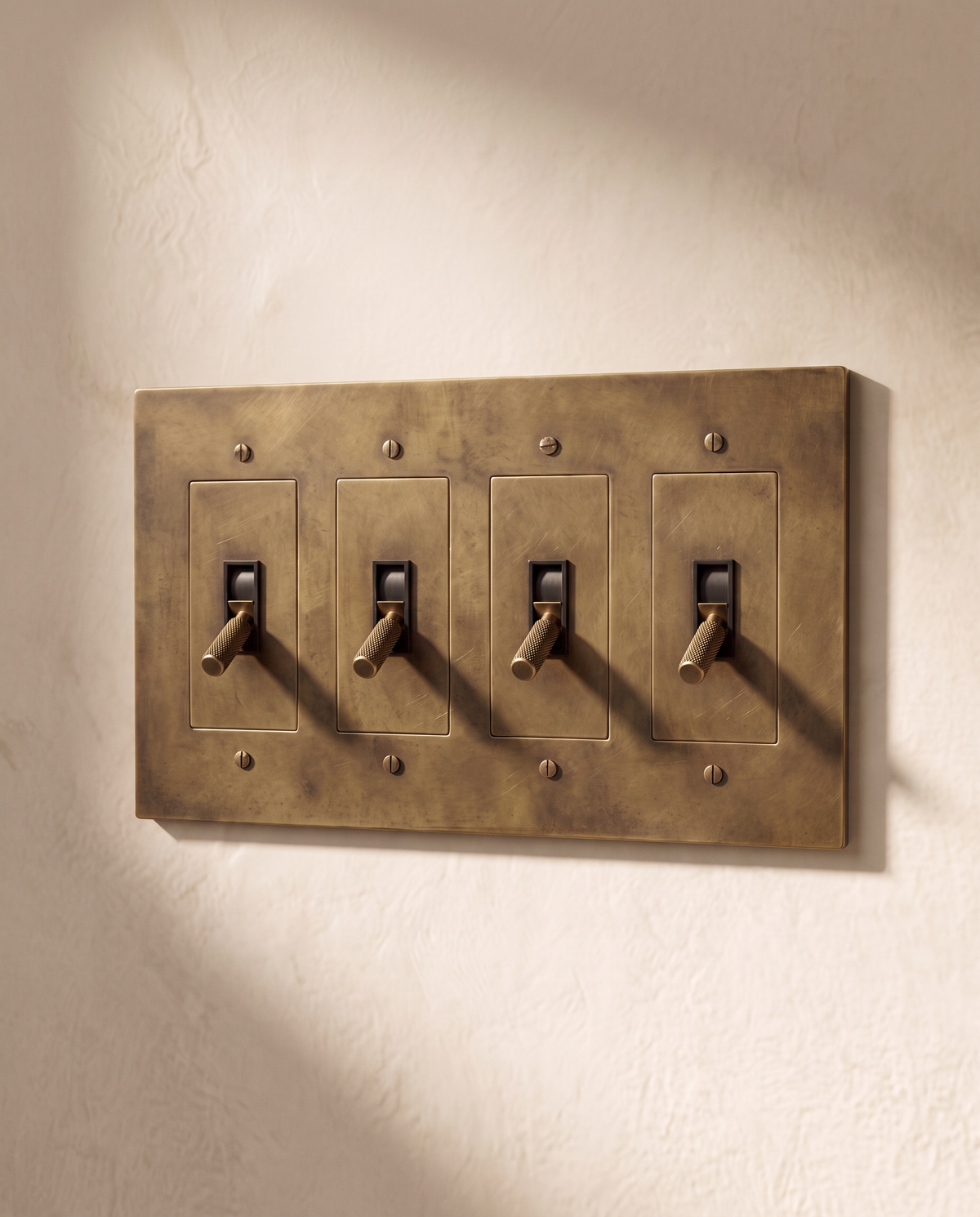

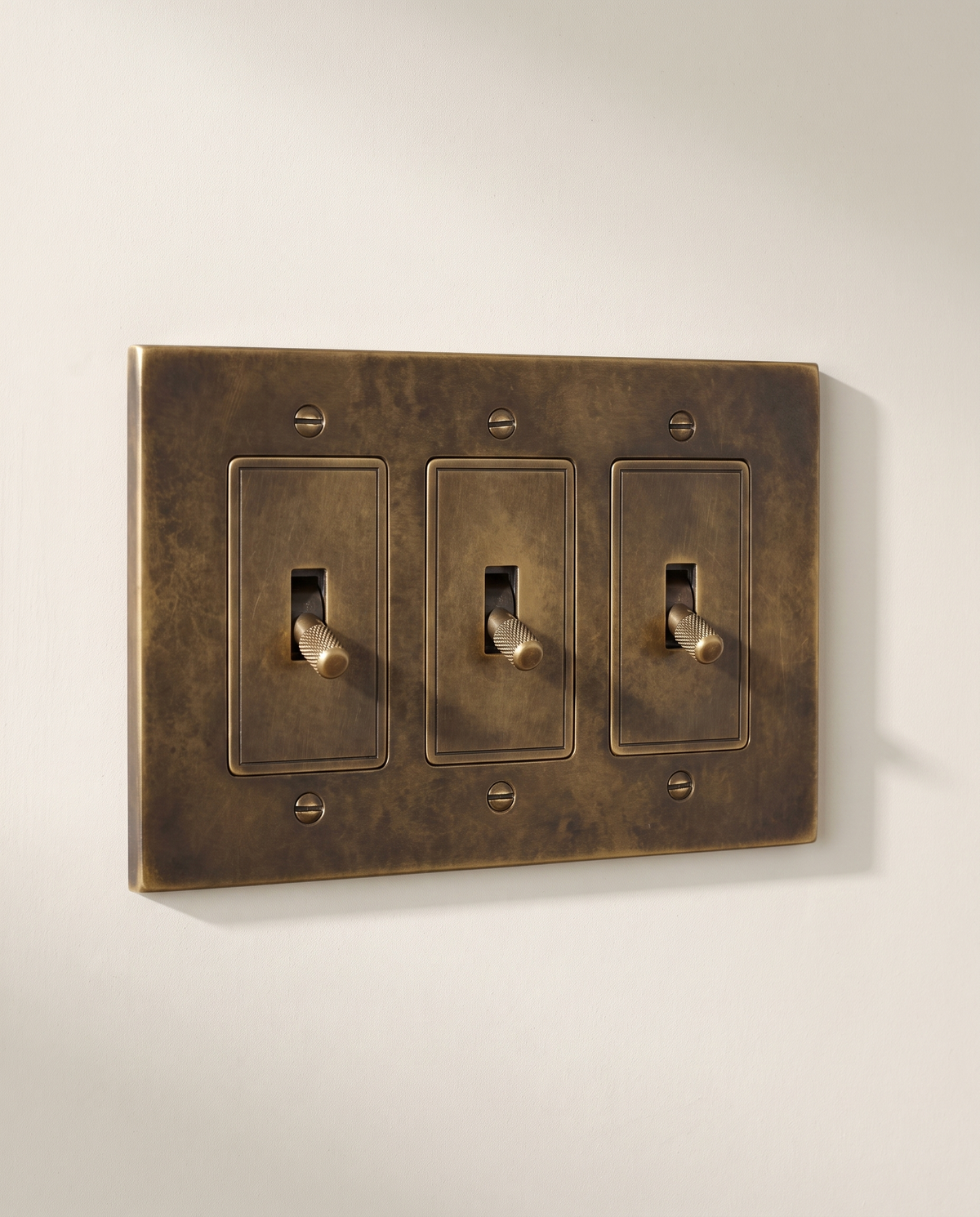

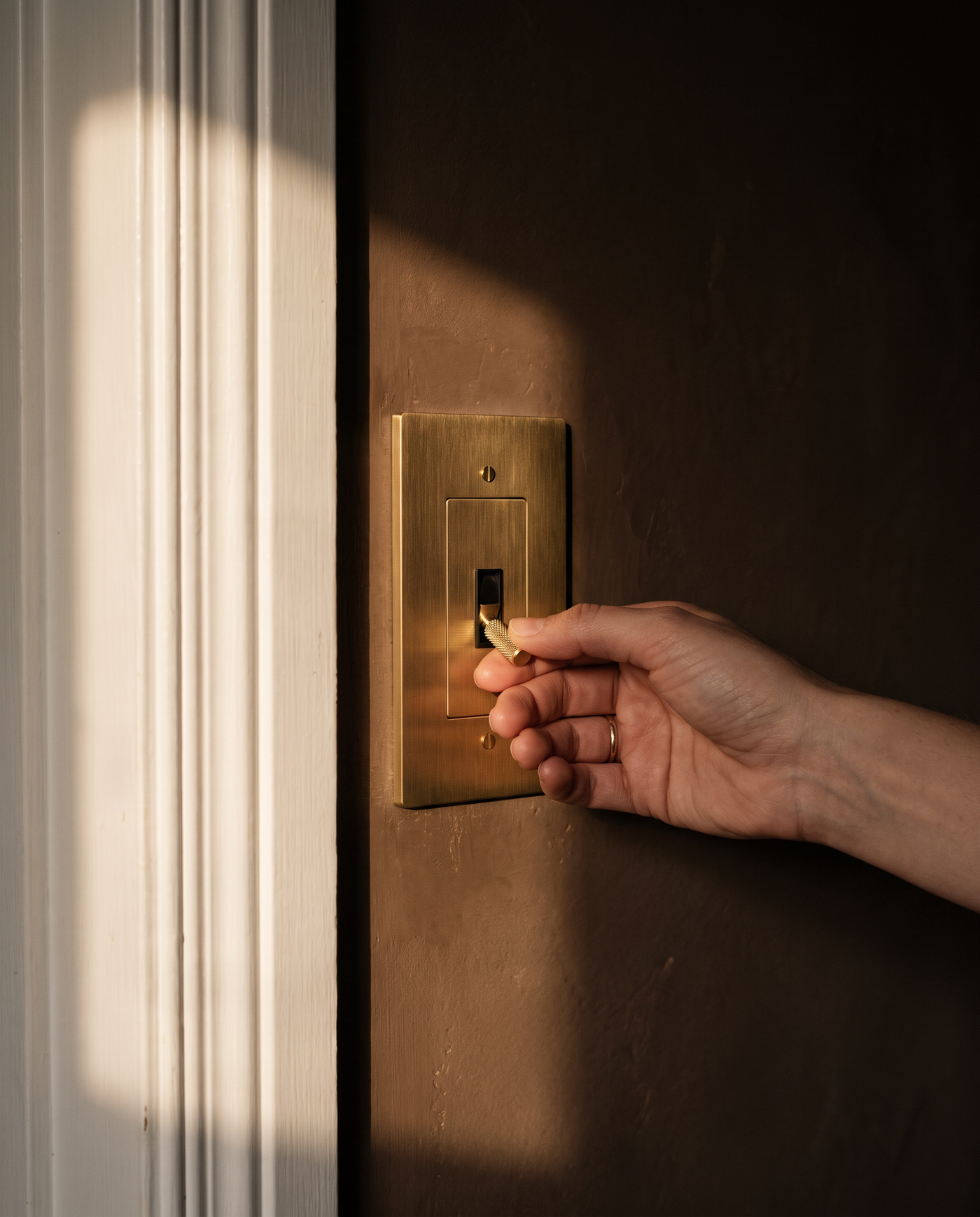

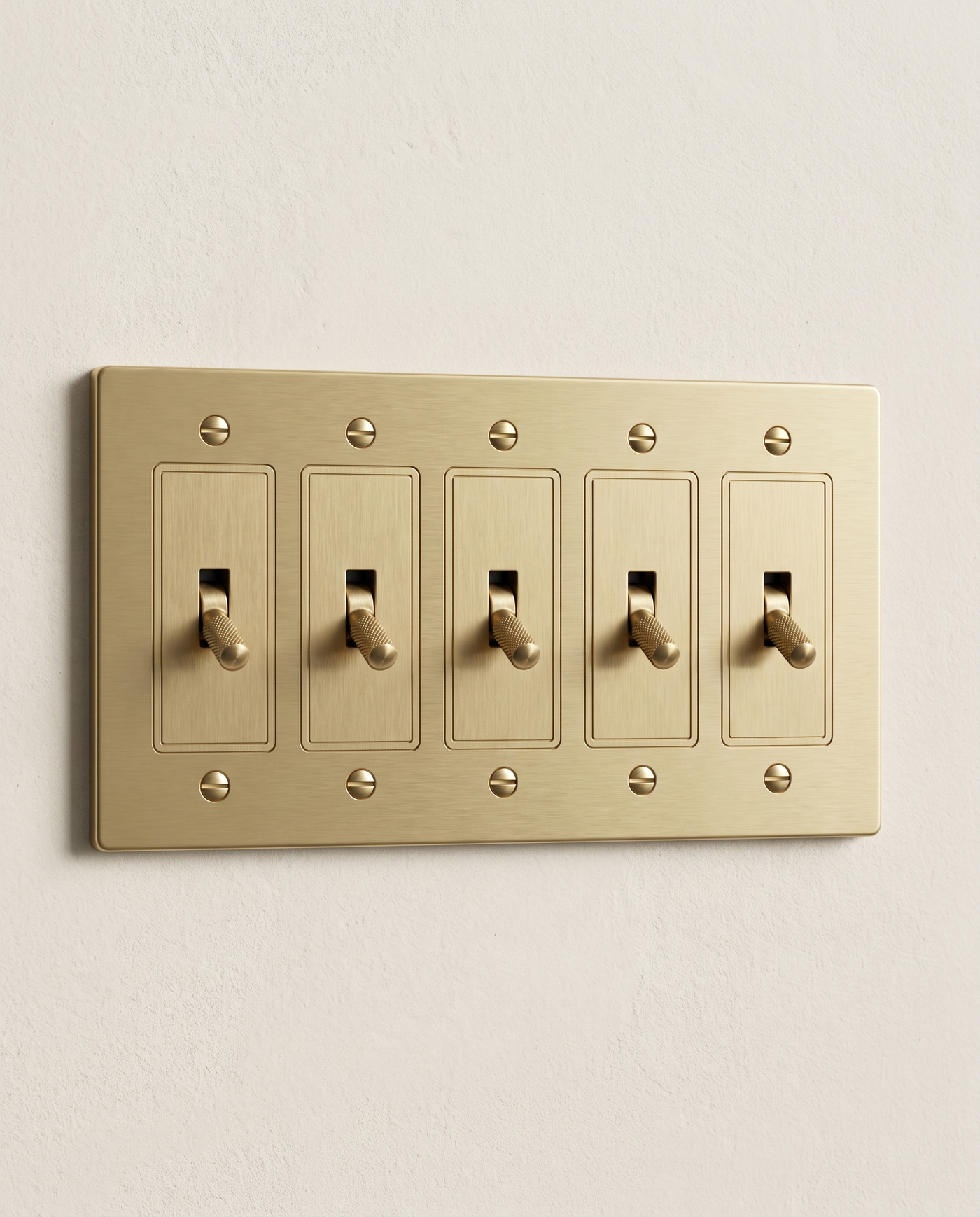

Brio is a toggle switch on a solid brass plate, with a finely ridged toggle that gives your thumb something to hold. It comes in Brushed Brass, Aged Brass or Matte Black with Brass, on plates of one to five positions, for a single hall light or a whole run of kitchen circuits. Friends still at the table, plates cleared, and your thumb finds the ridges without looking.
Why you will love it
- Toggles, dimmers and outlets in the same three finishes, so a whole run of plates reads as one.
- Arrives assembled, ready for a standard US box, in the same three finishes as the rest of Brio.
- Finishes applied to the metal itself, so they age with the house instead of peeling.
- Thirty days to live with it, and a year of cover on every piece.
Specifications
| Material | 100 percent solid brass plate and knurled brass toggle, hand finished |
|---|---|
| Weight | 1.5 to 4 lbs depending on plate size |
| Finishes | Brushed Brass, Aged Brass, Matte Black with Brass |
| Plate sizes | 1, 2, 3, 4 and 5 gang |
| Input voltage | 120 VAC |
| Rating | 15 A per switch, up to 1600 W LED |
| Certification | UL Listed for the US and Canada |
| Fits | standard US single gang electrical boxes, one box per position |
| In the box | brass plate, toggle switch mechanism and mounting screws |
- Matching Brio dimmers, outlets and plates in the same three finishes
Sizes
| Plate | Nominal width x height |
|---|---|
| 1 gang | 2.8 x 4.7 in (7.2 x 12 cm) |
| 2 gang | 4.7 x 4.7 in (12 x 12 cm) |
| 3 gang | 6.5 x 4.7 in (16.6 x 12 cm) |
| 4 gang | 8.3 x 4.7 in (21.2 x 12 cm) |
| 5 gang | 10.2 x 4.7 in (26 x 12 cm) |
Vertical mounting centers 3.3 in (8.4 cm). Each position fits a standard US single gang box; for two gang plates and larger, match the box to the plate.
Options and prices
| Finish | |
|---|---|
| Brushed Brass | $110.00 |
| Aged Brass | $110.00 |
| Matte Black with Brass | $110.00 |
| Plate Size | |
|---|---|
| 1 Gang | $110.00 |
| 2 Gang | $210.00 |
| 3 Gang | $305.00 |
| 4 Gang | $405.00 |
| 5 Gang | $495.00 |
Installation guide
Replaces an existing US standard switch in about five minutes. Have a licensed electrician fit it if you are not comfortable with wiring.
- Turn off the power. Switch off the circuit at the breaker or fuse box before you touch anything.
- Remove the old cover plate. Take out the screws holding the existing plate, lift it away and set it aside.
- Take out the old switch. Unscrew the old switch from the electrical box and ease it forward so you can reach the wiring.
- Disconnect the wires. Free the wires from the old switch. If they are wrapped around screws, loosen the screws. If they are pushed into holes at the back, cut them and strip the ends with a wire stripper.
- Connect the wires to the Brio switch. Black (live) to the brass or black screw, white (neutral) to the silver screw if your switch calls for it, green or bare copper to the green ground screw. Tighten each connection firmly.
- Secure the new switch. Fold the wires back into the box, line up the switch and fasten it with the screws supplied.
- Fit the brass plate. Set the Brio plate over the module and tighten the two face screws with a flathead screwdriver.
- Turn the power back on. Reset the breaker or fuse at the panel.
- Test it. Flip the toggle up and down. The light should switch cleanly on and off.
If anything is unclear at any step, stop and call a licensed electrician. We recommend professional installation.
Care
Wipe with a soft dry cloth. No abrasives, no polish. Brass is meant to age with the house.
Shipping and returns
Free U.S. shipping on every order. Handling takes 3 business days and delivery 15 to 20 business days after the order; priority processing shortens that to 10 to 20. Returns are accepted within 30 days of delivery on unused, uninstalled pieces in their original packaging; a restocking fee of 5% applies, more if the packaging or parts are missing. Every piece carries a 1-year manufacturer warranty.

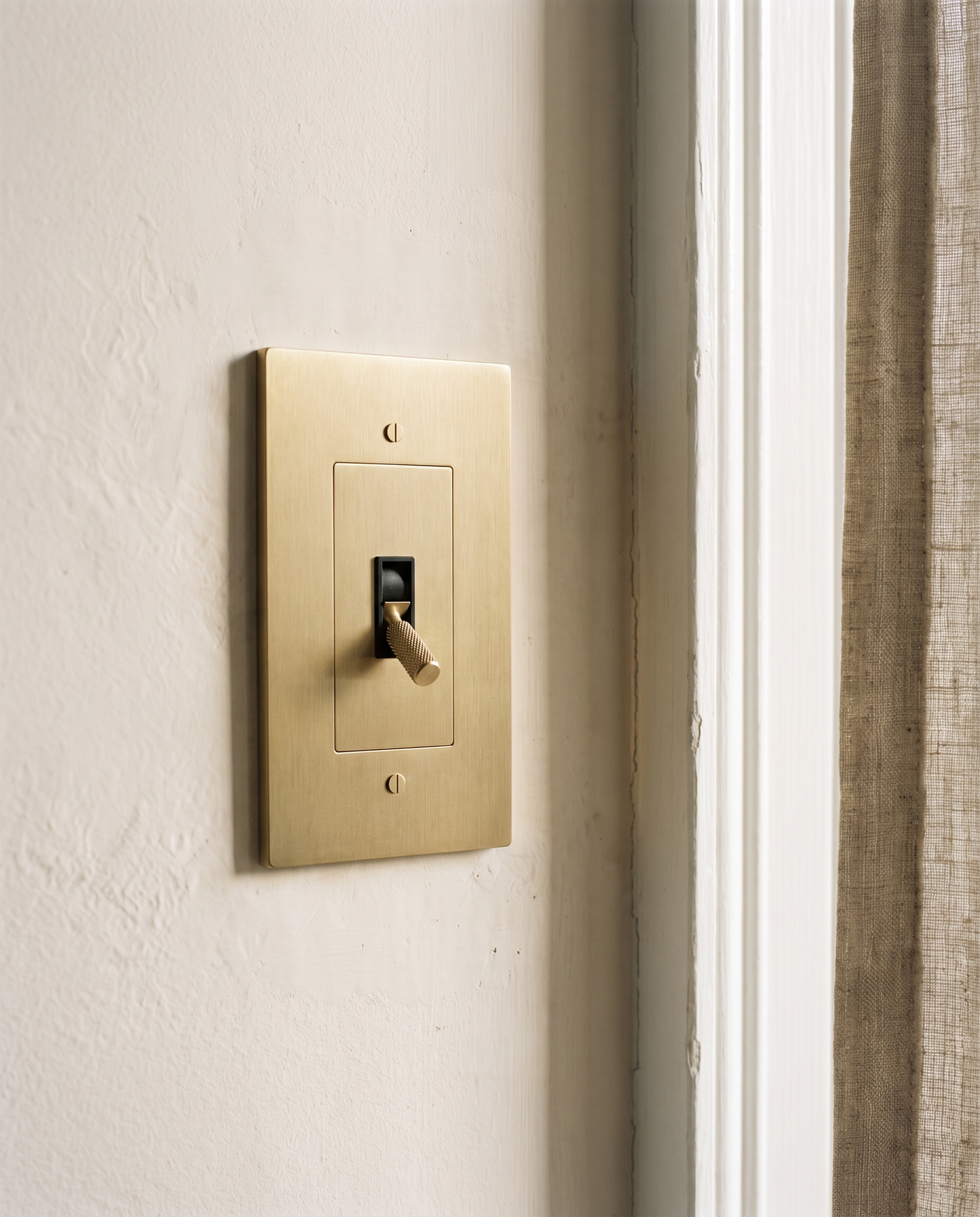

In the room
See it in context
Real rooms and real light, the way it will read from across the room.
The Brio series
Complete the family
Knobs, pulls and details from the same hand, made to sit together.
FAQ
Questions, answered
Does it fit a standard US wall box?
Yes. Every Brio plate mounts to a standard US box, one gang per position, using the screws already in the box.
Do I need an electrician?
Yes. It is a short job for a licensed electrician, and it keeps the warranty intact.
Will the dimmer work with my LED bulbs?
With dimmable LED lamps, yes. Check the lamp packaging for the word dimmable before you order.
Can I mix a toggle, a dimmer and an outlet on one plate?
Yes. That is what the Build Your Own plate is for. Choose the plate size, then what each position does.
Which finish should I choose?
Brushed Brass reads warm and quiet, Aged Brass darker and softer, Matte Black with Brass sharp against pale walls. The sample kit lets you hold all three against your own wall.
Will the finish wear where I touch it?
The finish is on the brass itself, so it softens with use rather than peeling. Aged Brass is meant to darken further.
Do you offer trade pricing?
Yes. Interior designers, architects and builders can apply to the trade program for preferred pricing, samples and help planning full-room hardware schedules.
