Brio Brass Rotary Dimmer
One slow turn of a ridged brass dial, and it is dinner.
- Ready assembled
Free U.S. shippingArrives Sep 30 to Oct 730-day returns1-year warranty
- Made to lastSolid brass and natural stone, backed by a 1-year warranty.
- Free U.S. shippingEvery order, no minimum. 30-day returns if it is not right.
- A real person answersWrite to us with a photo of your cabinet and we will confirm the fit before you order.
Product details
Everything you need to know
Description
One slow turn of a ridged brass dial, and it is dinner.

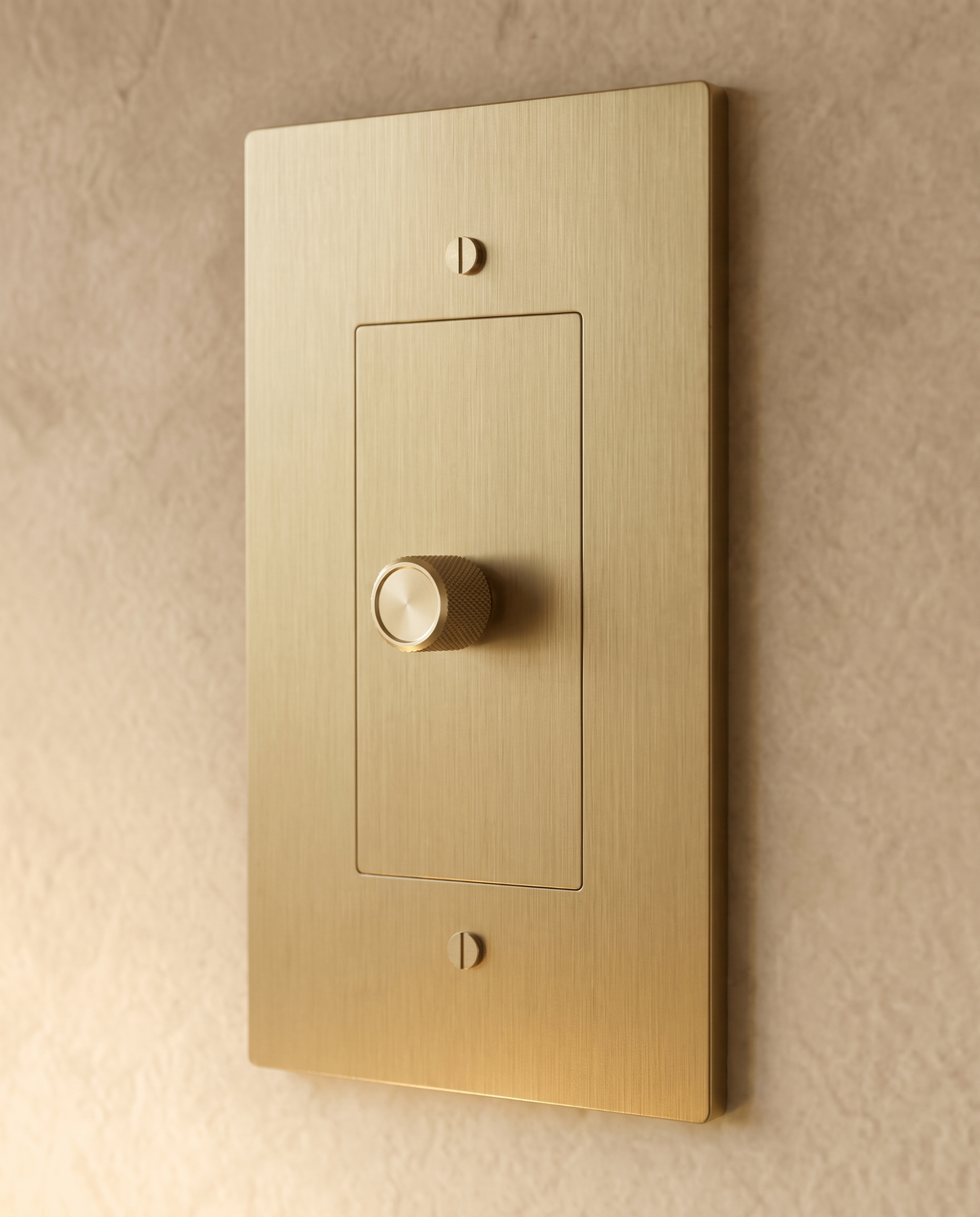

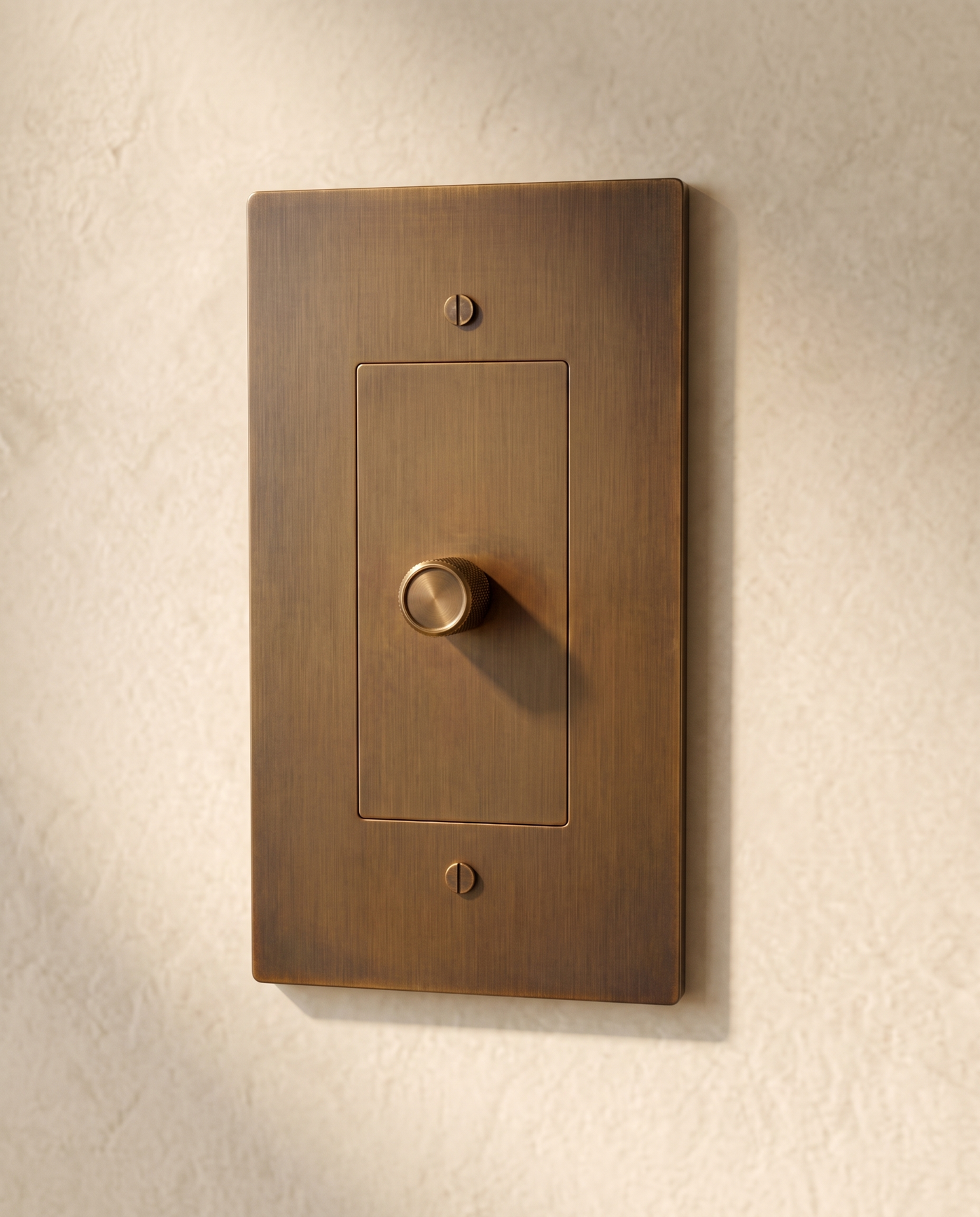

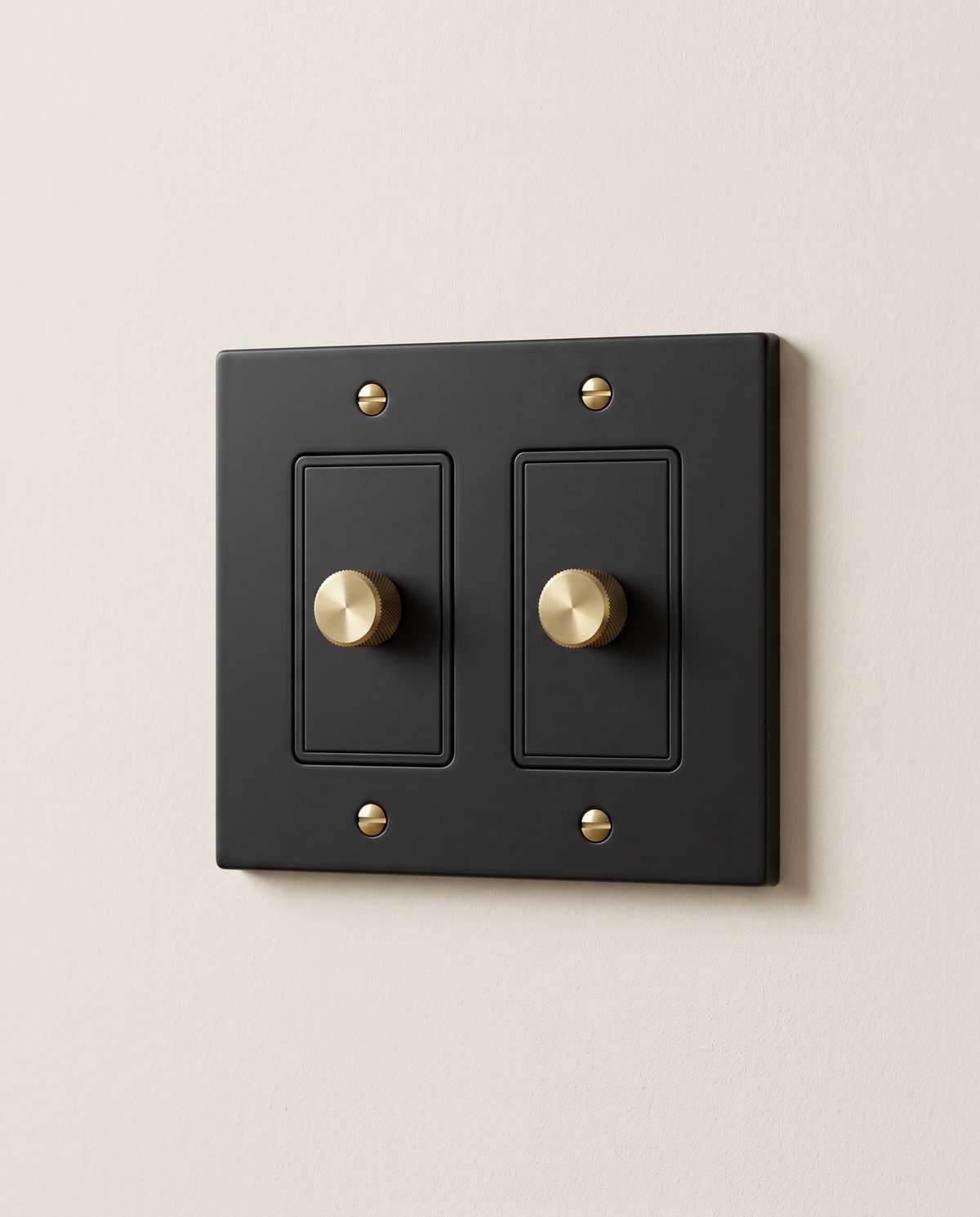

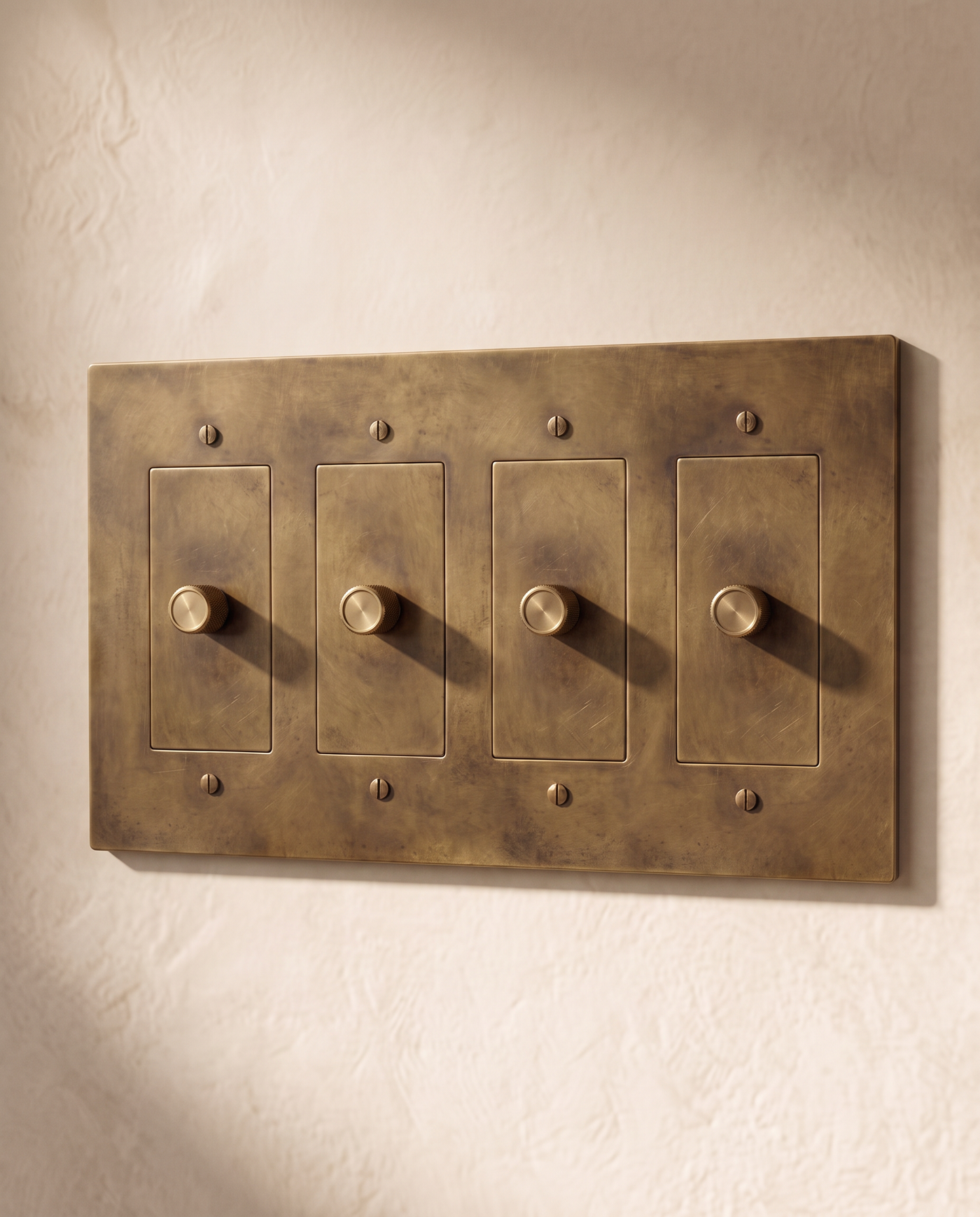

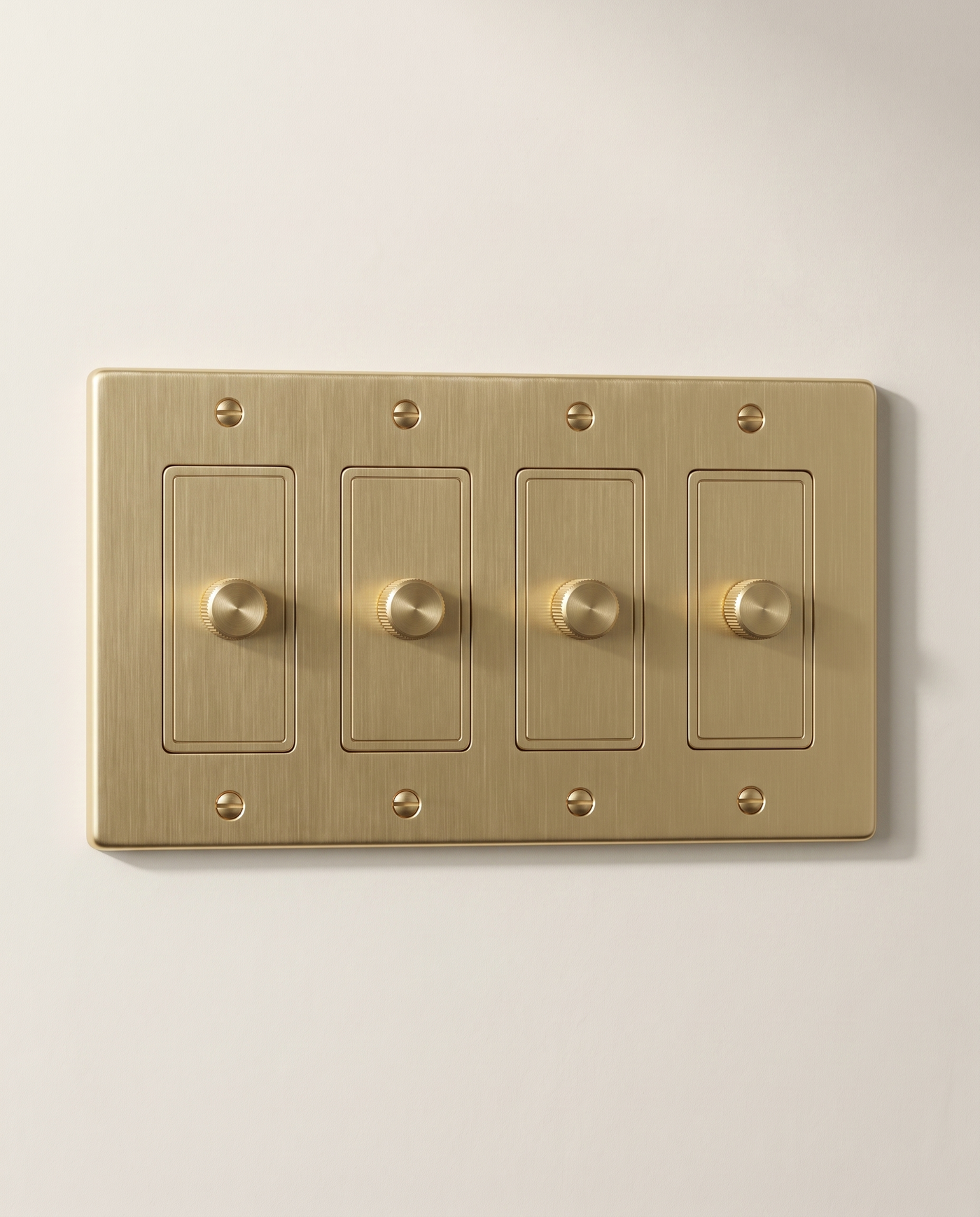

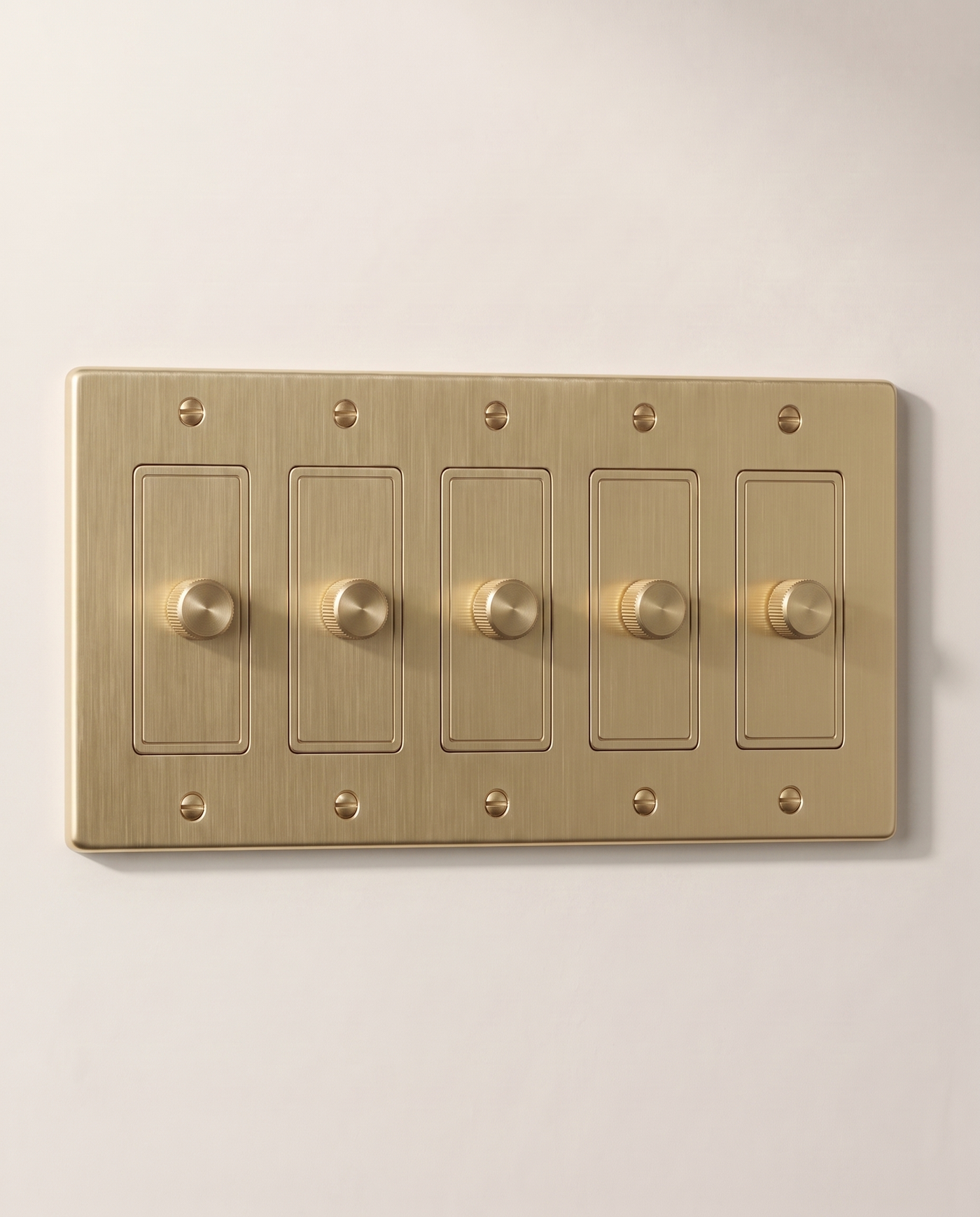

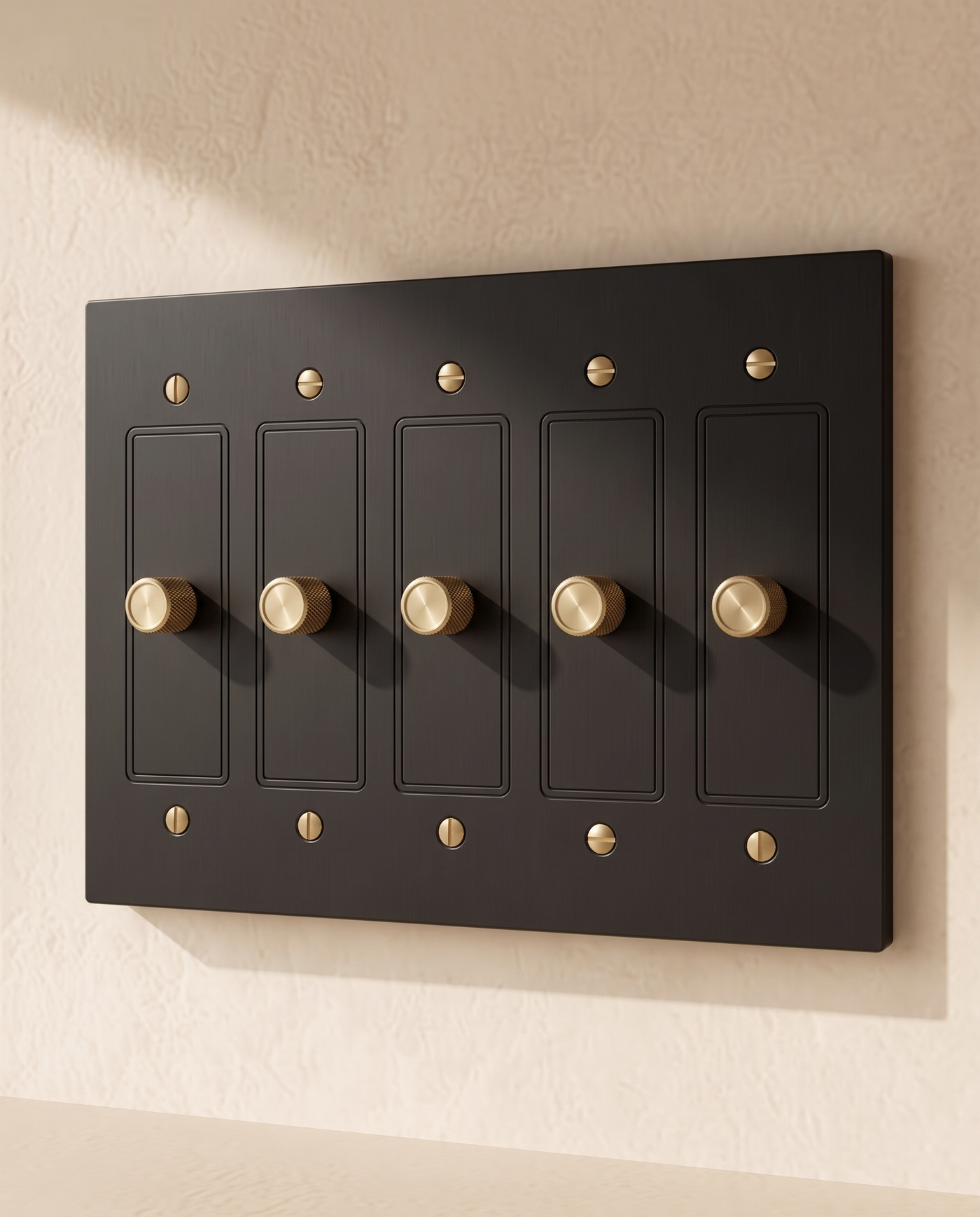

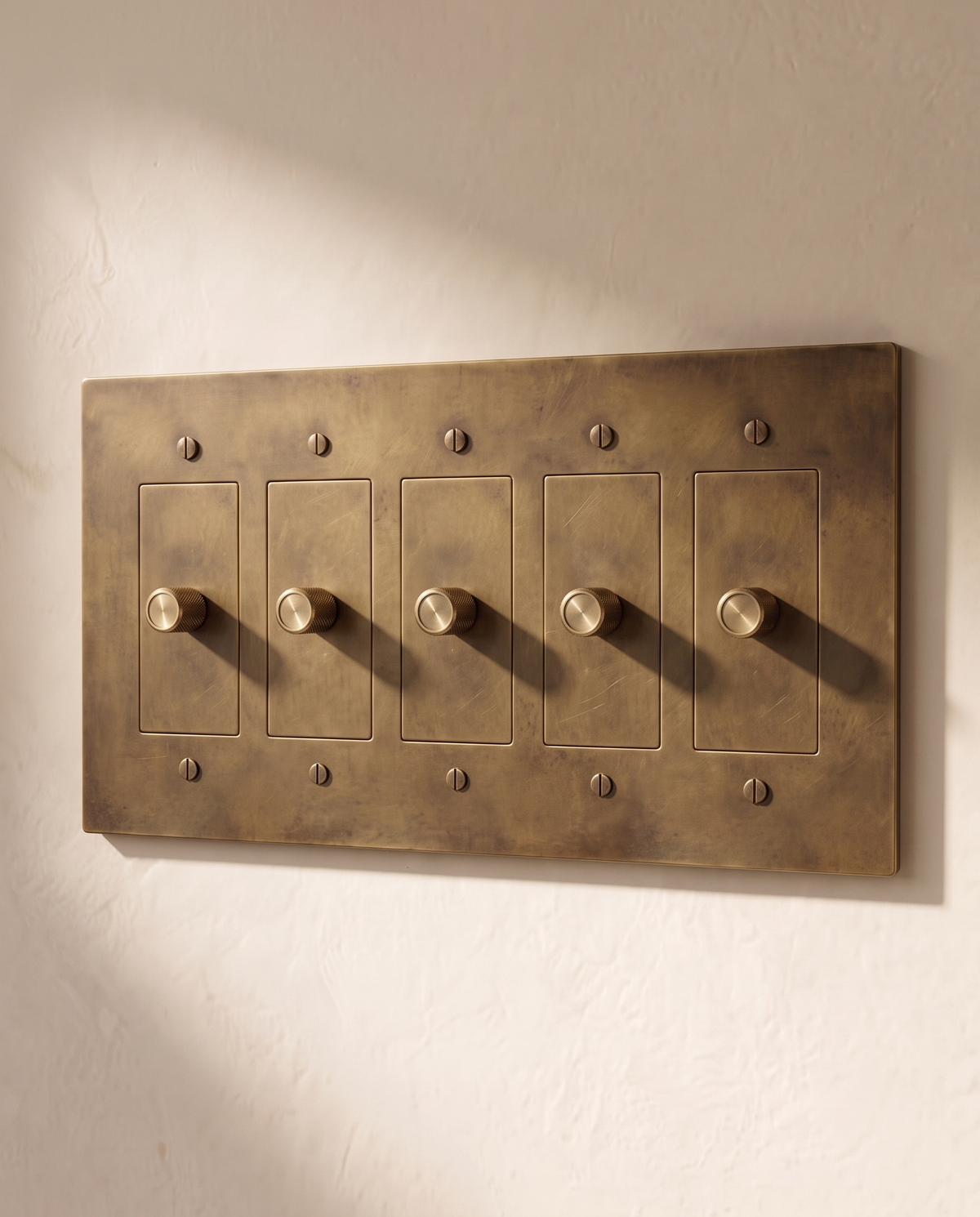

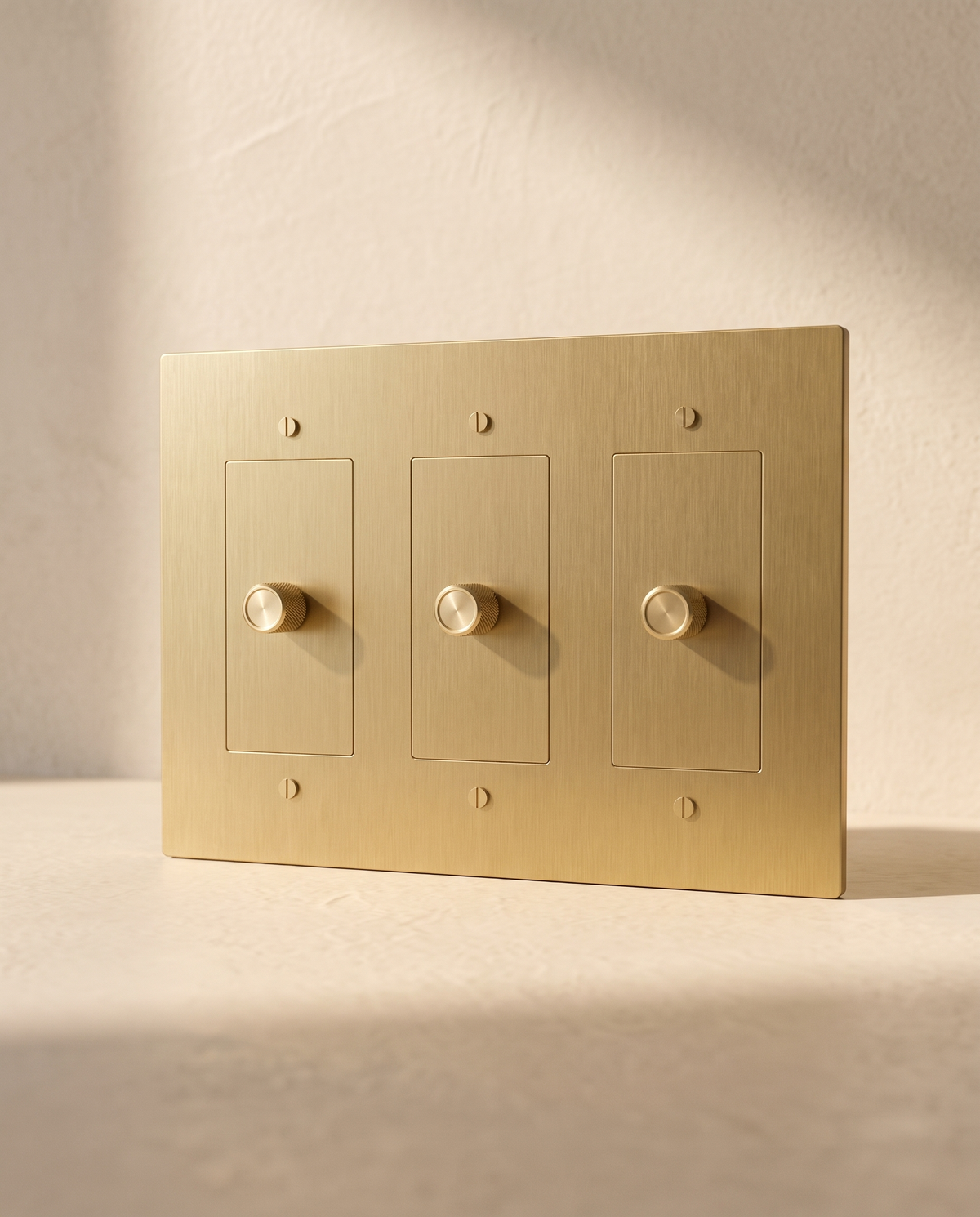

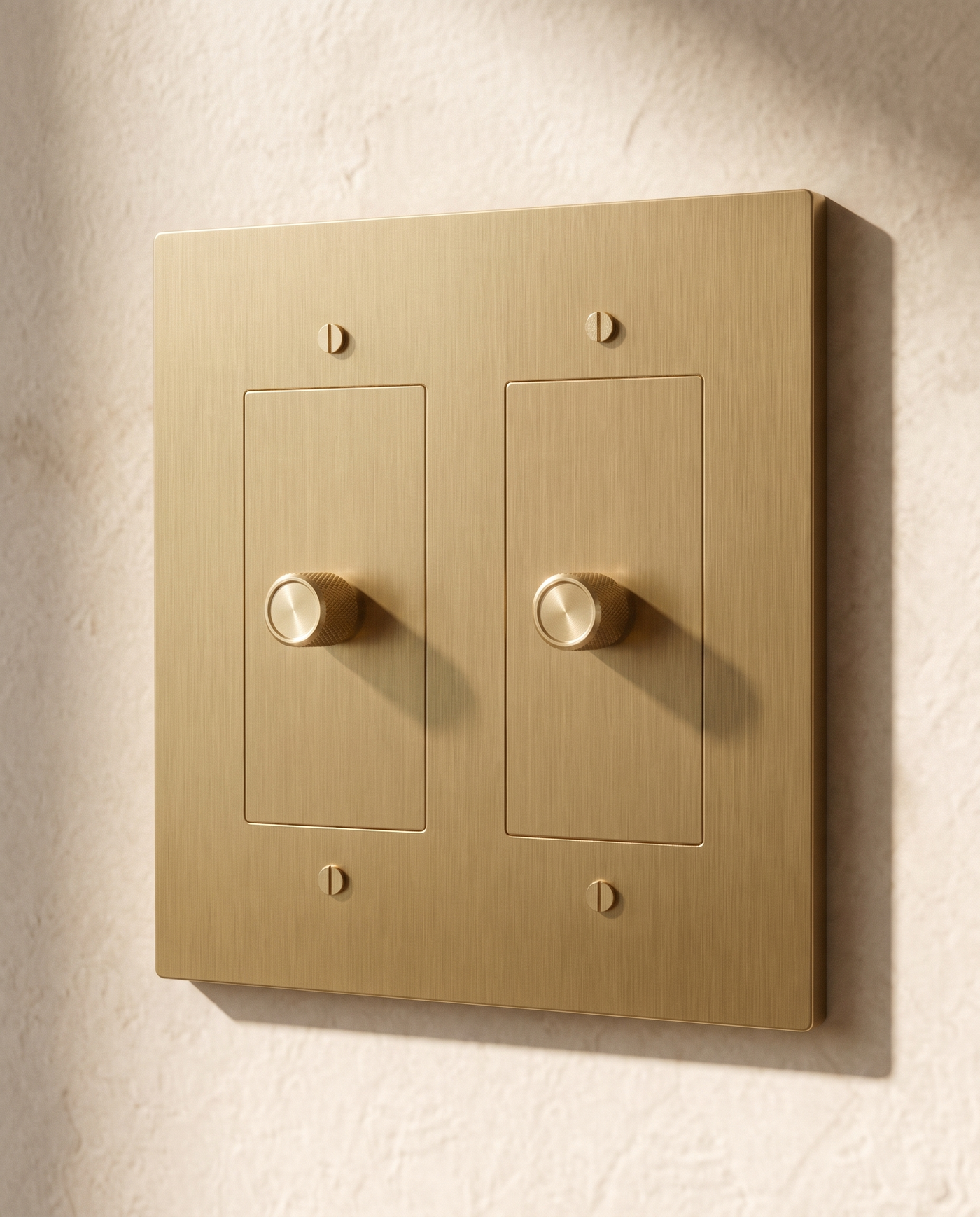

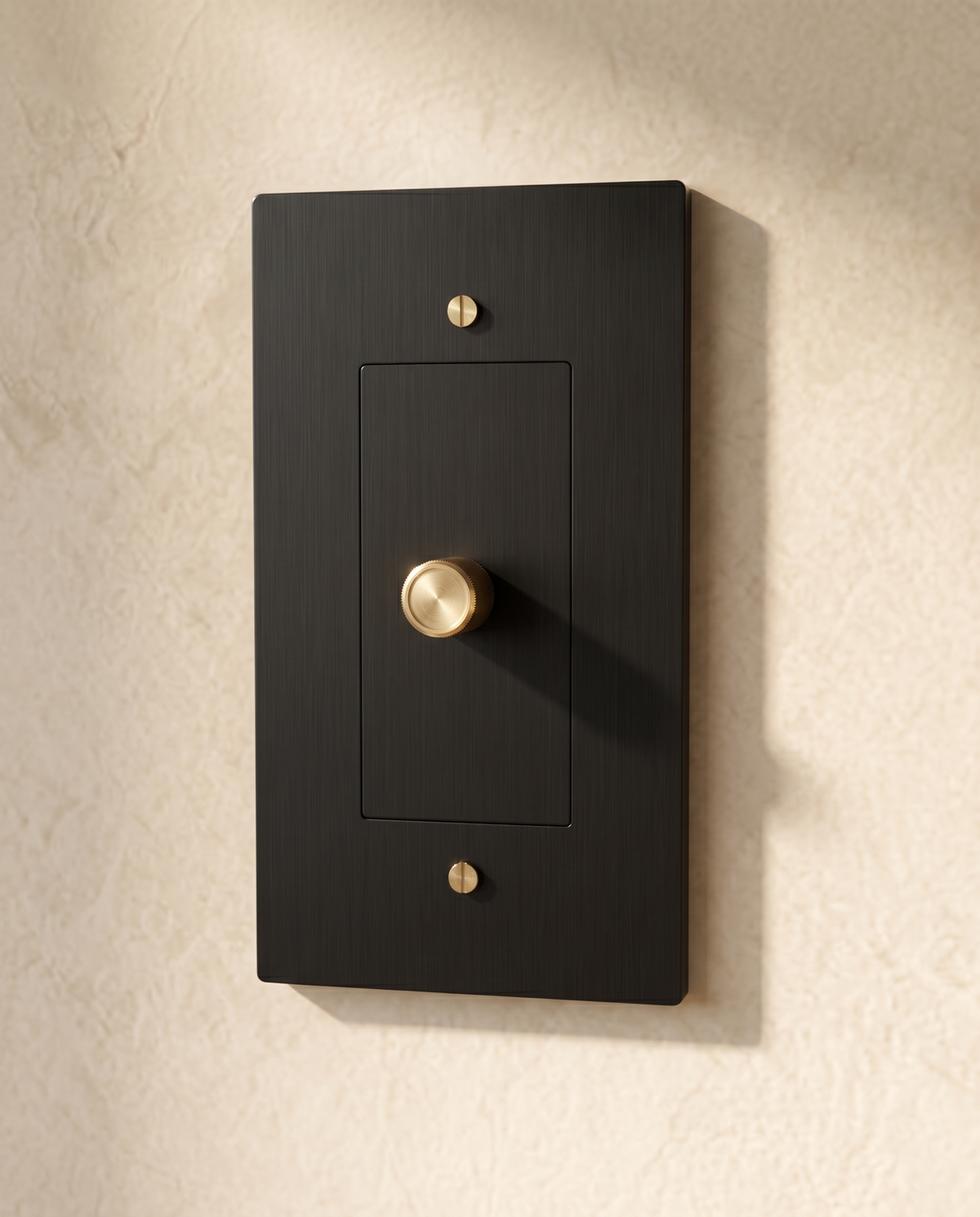

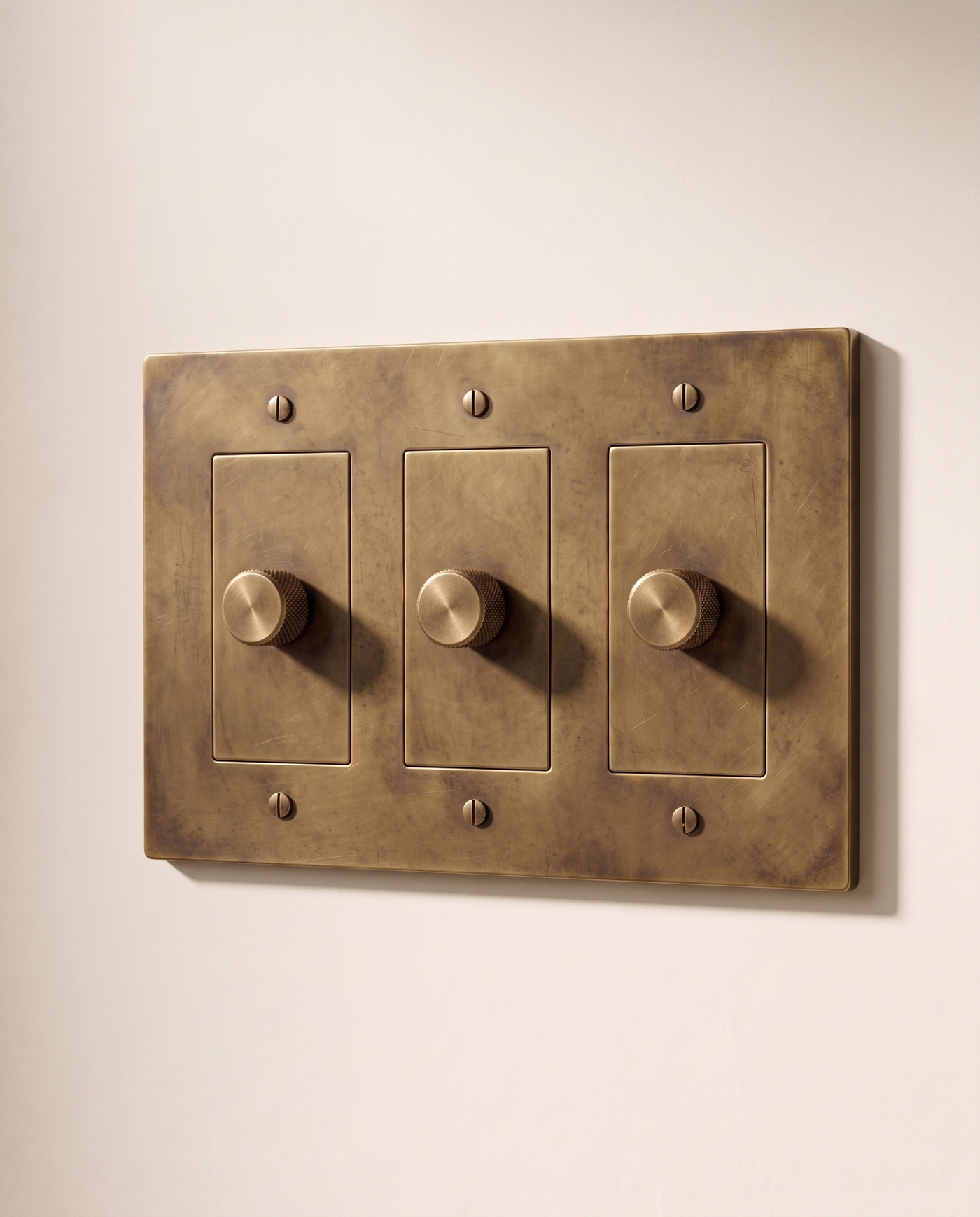

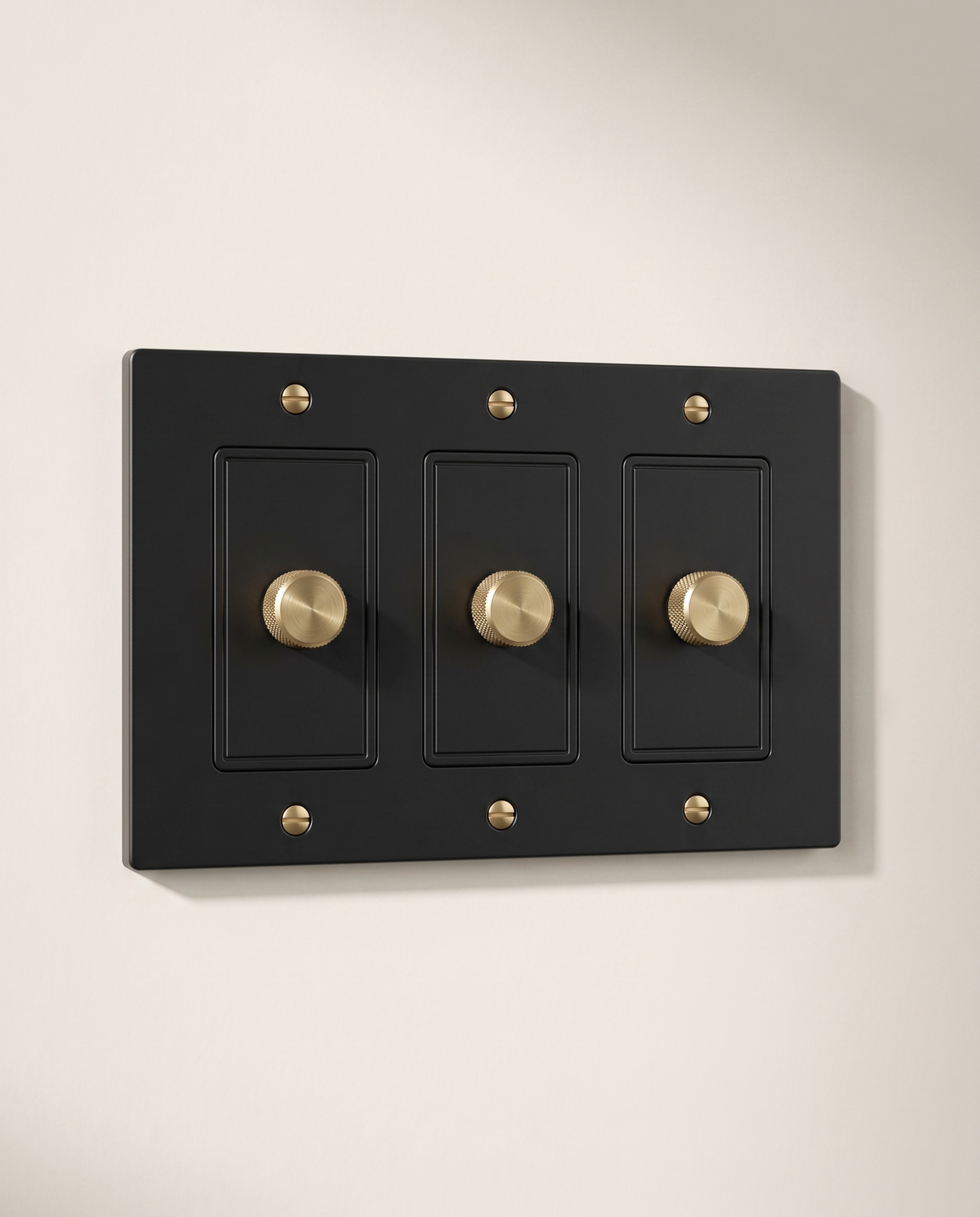

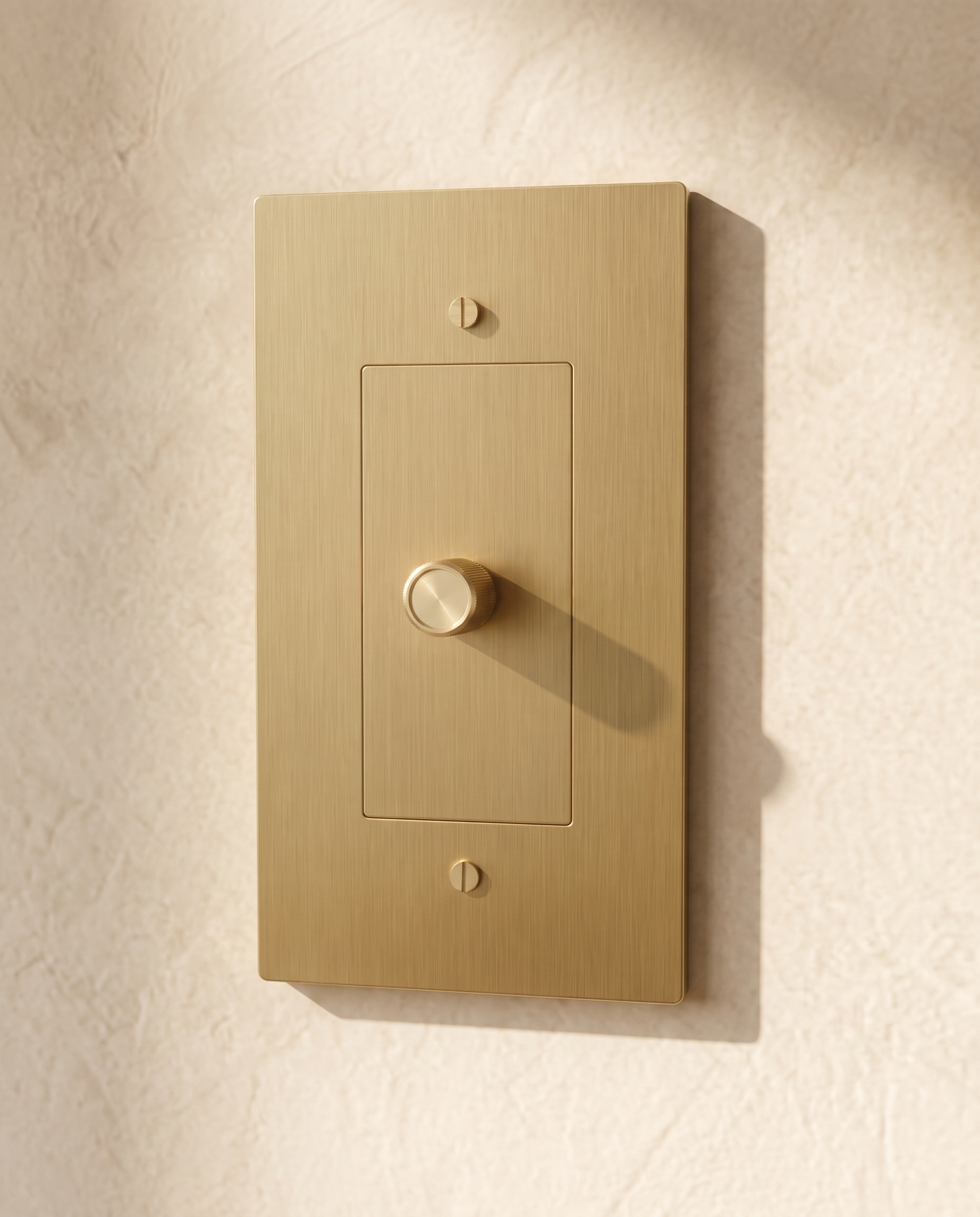

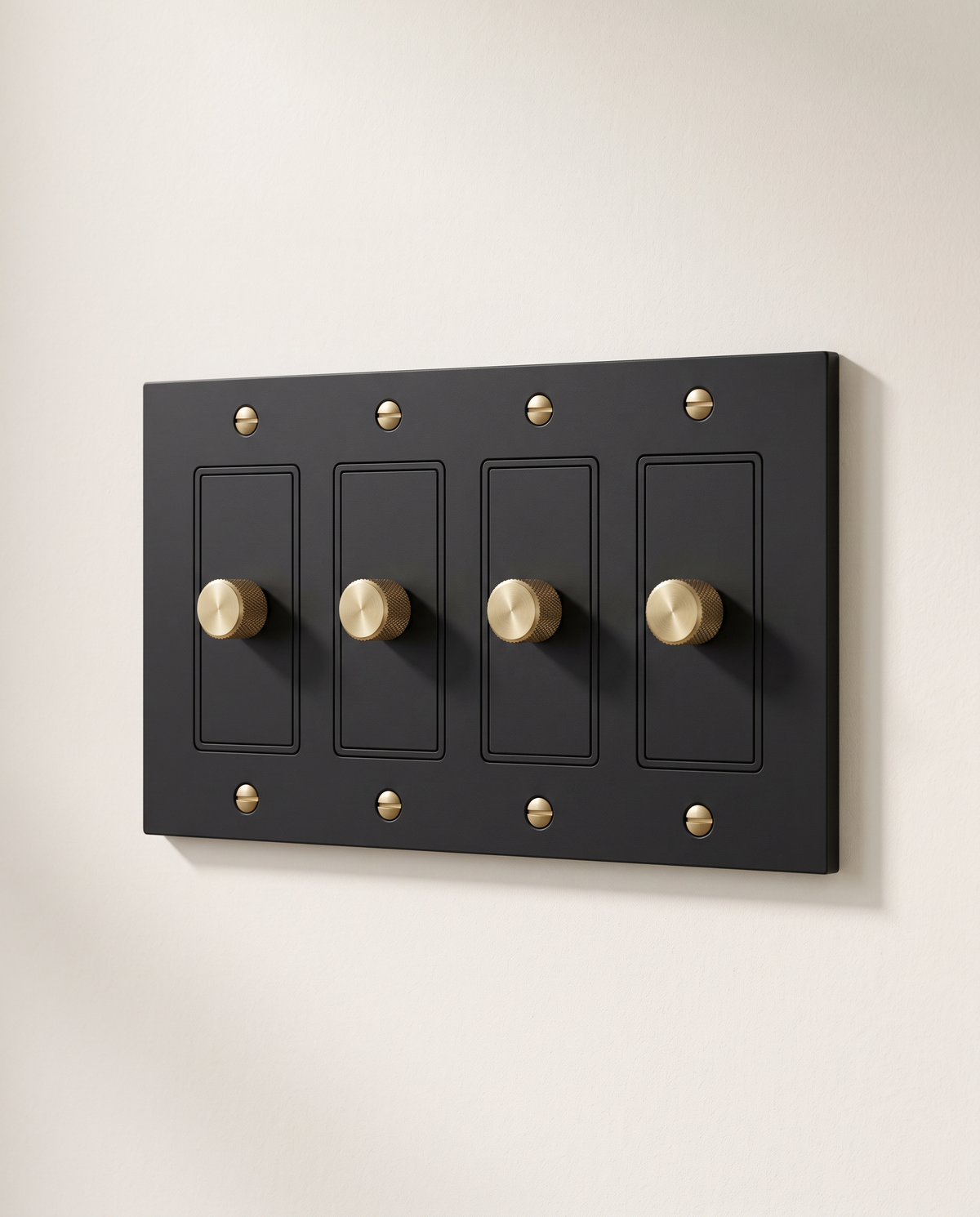

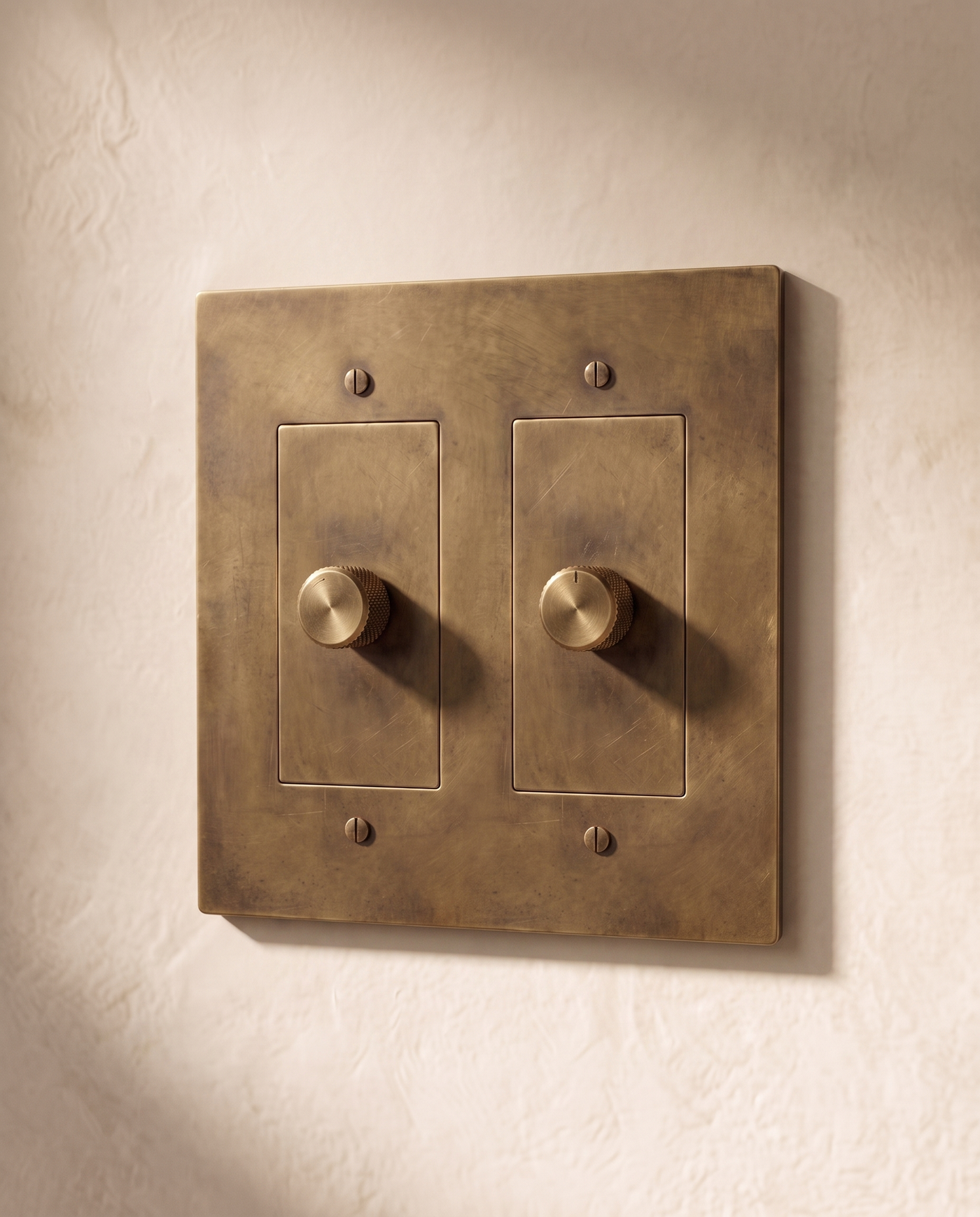

Brio is a rotary dimmer on a solid brass plate, with a knurled dial whose ridged edge gives your fingertips a sure grip and a smooth, silent travel from a soft glow to full brightness. It comes in Brushed Brass, Aged Brass or Matte Black with Brass, on plates of one to five positions, so a dimmer can sit beside a toggle in the same run. Guests at the door, the kitchen still bright from cooking, and you roll the dial back a quarter turn before you open it.
Why you will love it
- Toggles, dimmers and outlets in the same three finishes, so a whole run of plates reads as one.
- Arrives assembled, ready for a standard US box, in the same three finishes as the rest of Brio.
- Finishes applied to the metal itself, so they age with the house instead of peeling.
- Thirty days to live with it, and a year of cover on every piece.
Specifications
| Material | 100 percent solid brass plate and knurled brass dial, hand finished |
|---|---|
| Finishes | Brushed Brass, Aged Brass, Matte Black with Brass |

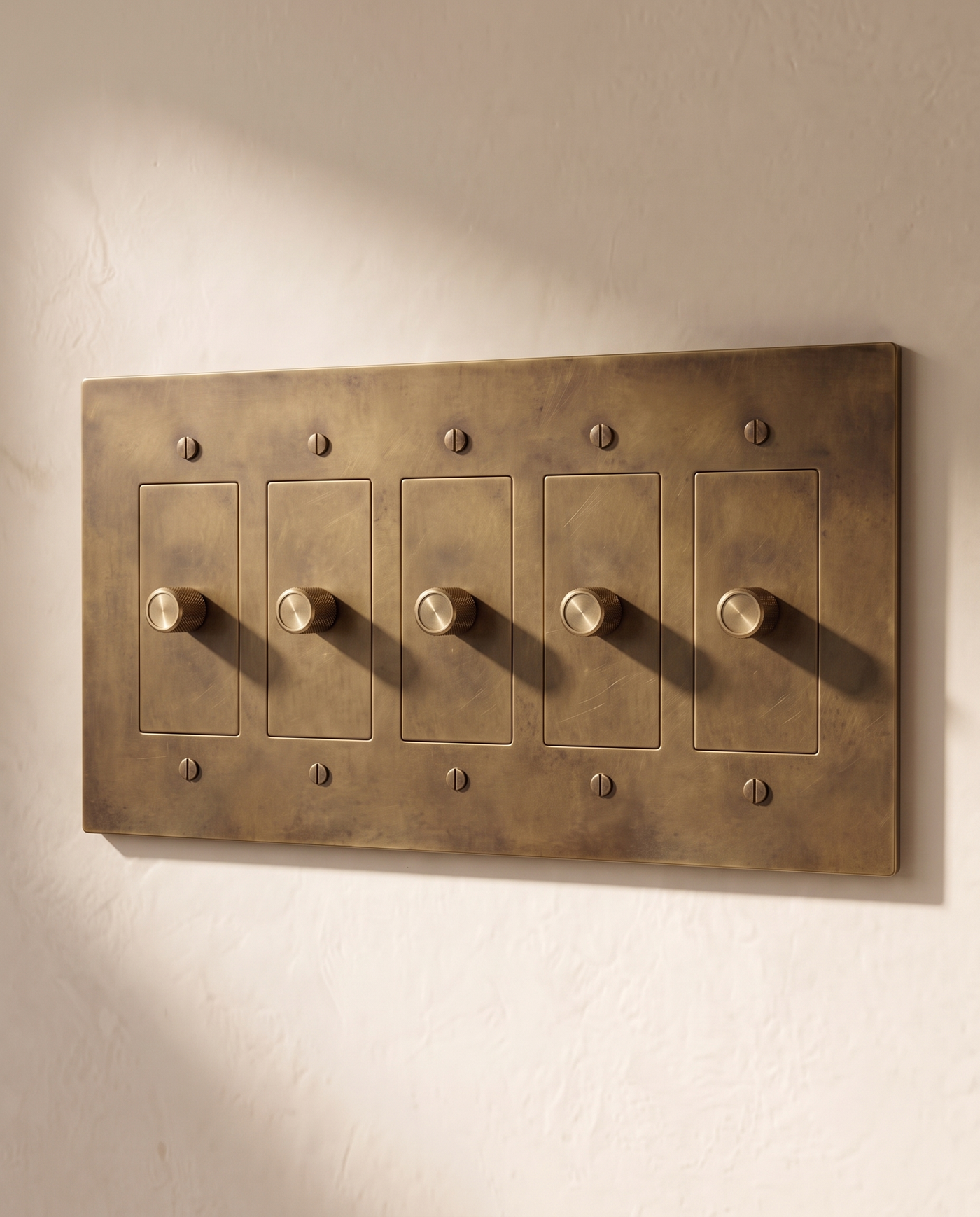

| Plate sizes | 1, 2, 3, 4 and 5 gang |
| Input voltage | 120 VAC |
| Load | up to 150 W LED or 250 W incandescent per dimmer |
| Dimming | triac, leading edge; works with most dimmable LED and incandescent bulbs |
| Circuit | single pole (one way) only. For lights controlled from two locations, choose the Brio 3 Way Rotary Dimmer |
| Certification | UL Listed for the US and Canada |
| Fits | standard US single gang electrical boxes, one box per position |
| In the box | brass plate, dimmer module with knurled dial and mounting screws |
- Matching Brio toggles, outlets and plates in the same three finishes
Sizes
| Plate | Nominal width x height |
|---|---|
| 1 gang | 2.8 x 4.7 in (7.2 x 12 cm) |
| 2 gang | 4.7 x 4.7 in (12 x 12 cm) |
| 3 gang | 6.5 x 4.7 in (16.6 x 12 cm) |
| 4 gang | 8.3 x 4.7 in (21.2 x 12 cm) |
| 5 gang | 10.2 x 4.7 in (26 x 12 cm) |
Vertical mounting centers 3.3 in (8.4 cm). Each position fits a standard US single gang box; for two gang plates and larger, match the box to the plate.
Options and prices
| Finish | |
|---|---|
| Brushed Brass | $135.00 |
| Aged Brass | $135.00 |
| Matte Black with Brass | $135.00 |
| Plate Size | |
|---|---|
| 1 Gang | $135.00 |
| 2 Gang | $265.00 |
| 3 Gang | $385.00 |
| 4 Gang | $510.00 |
| 5 Gang | $625.00 |
Installation guide
Replaces an existing US standard dimmer or switch in about five minutes. Check that every bulb on the circuit is dimmable before you start, and have a licensed electrician fit it if you are not comfortable with wiring.
- Turn off the power. Switch off the circuit at the breaker or fuse box before you touch anything.
- Remove the old cover plate. Take out the screws holding the existing plate, lift it away and set it aside.
- Take out the old dimmer. Unscrew the old dimmer from the electrical box and ease it forward so you can reach the wiring.
- Disconnect the wires. Free the wires from the old dimmer. If they are wrapped around screws, loosen the screws. If they are pushed into holes at the back, cut them and strip the ends with a wire stripper.
- Connect the wires to the Brio dimmer. Wrap each wire around its terminal screw and tighten, or push the stripped ends into the terminal holes. Follow the markings on the module.
- Secure the new dimmer. Fold the wires back into the box, line up the dimmer and fasten it with the screws supplied.
- Fit the brass plate. Set the Brio plate over the module and tighten the two face screws with a flathead screwdriver.
- Turn the power back on. Reset the breaker or fuse at the panel.
- Test it. Turn the dial. The lights should rise and fall smoothly with no flicker.
If anything is unclear at any step, stop and call a licensed electrician. We recommend professional installation.
Care
Wipe with a soft dry cloth. No abrasives, no polish. Brass is meant to age with the house.
Shipping and returns
Free U.S. shipping on every order. Handling takes 3 business days and delivery 15 to 20 business days after the order; priority processing shortens that to 10 to 20. Returns are accepted within 30 days of delivery on unused, uninstalled pieces in their original packaging; a restocking fee of 5% applies, more if the packaging or parts are missing. Every piece carries a 1-year manufacturer warranty.

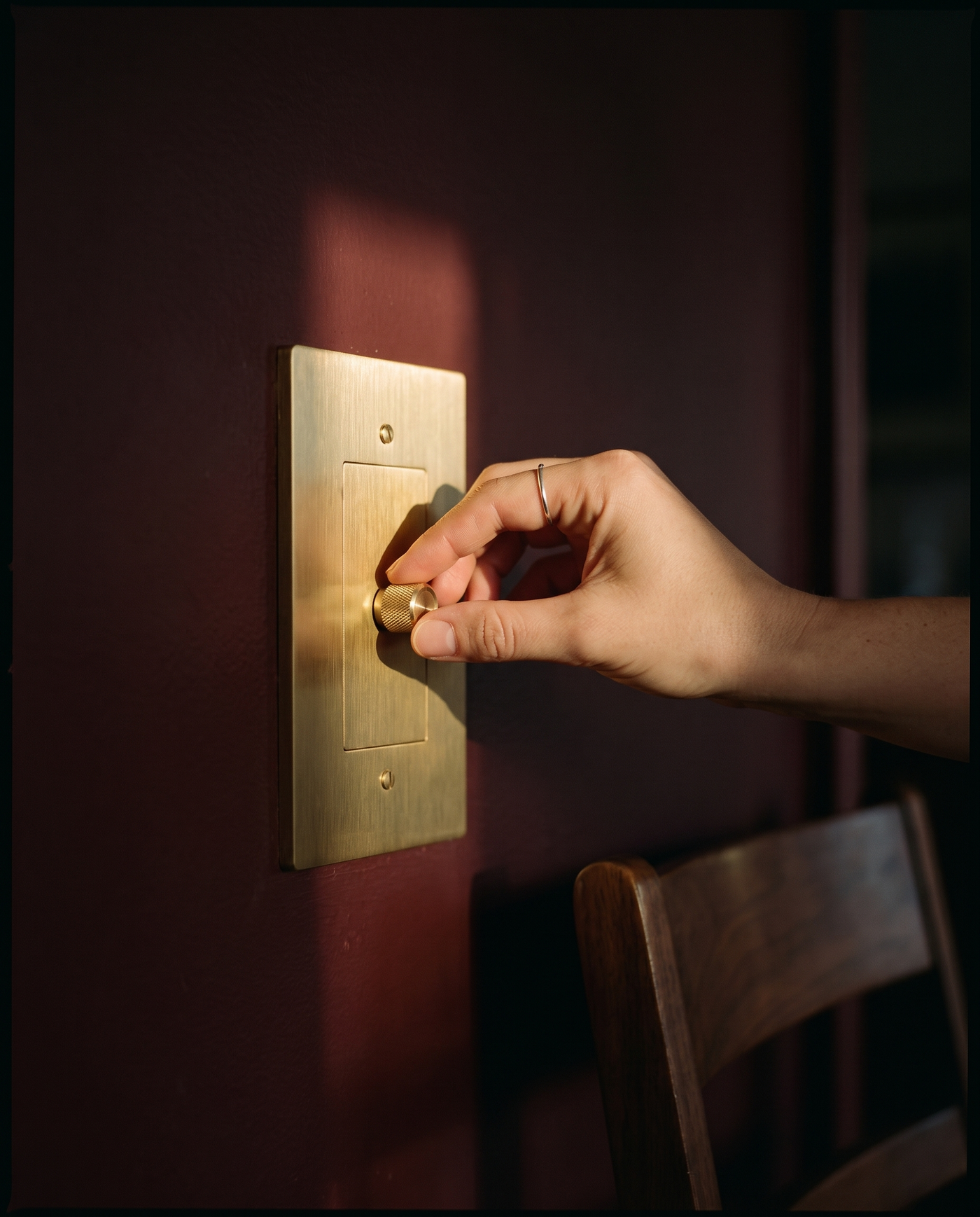

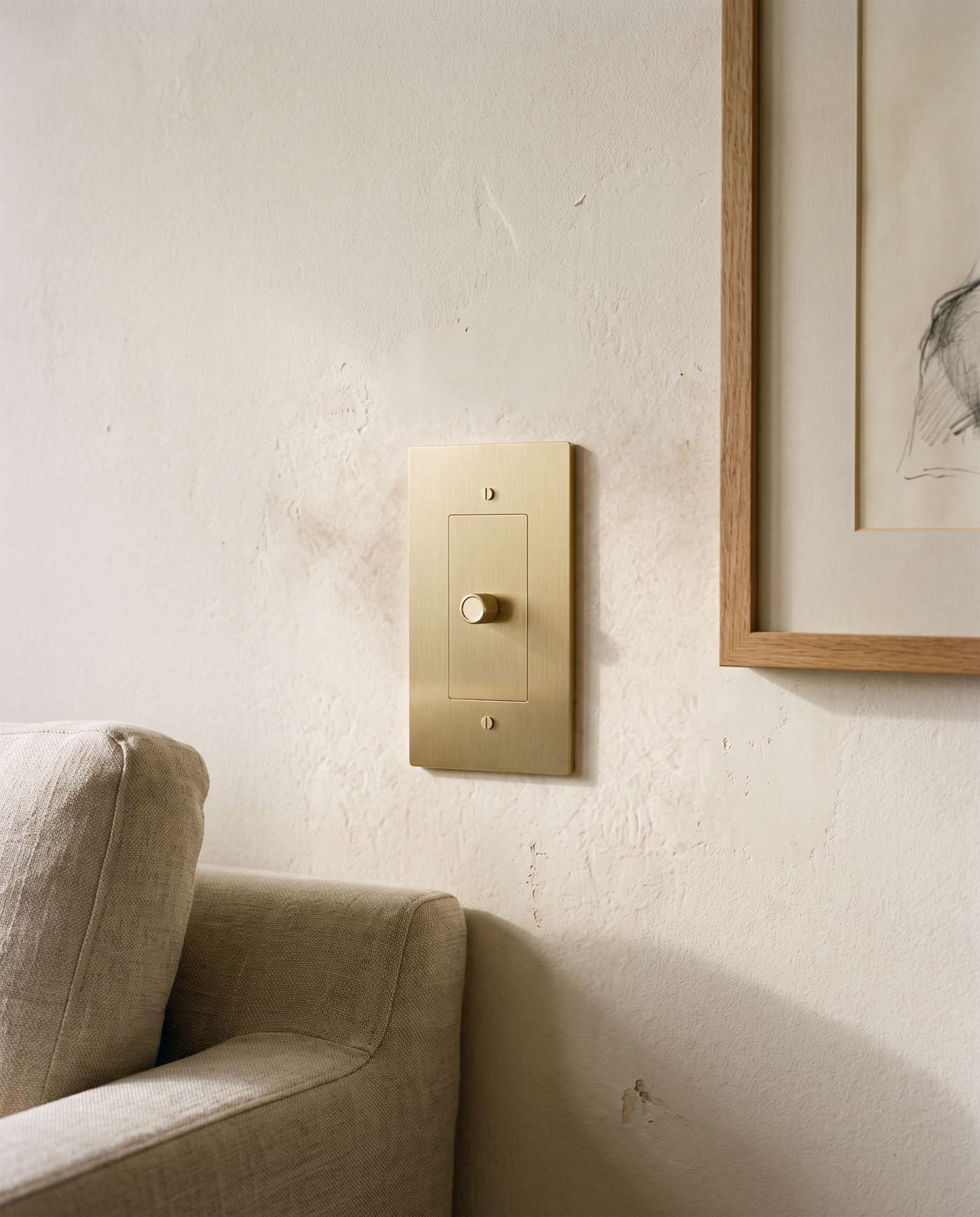

In the room
See it in context
Real rooms and real light, the way it will read from across the room.
The Brio series
Complete the family
Knobs, pulls and details from the same hand, made to sit together.
FAQ
Questions, answered
Does it fit a standard US wall box?
Yes. Every Brio plate mounts to a standard US box, one gang per position, using the screws already in the box.
Do I need an electrician?
Yes. It is a short job for a licensed electrician, and it keeps the warranty intact.
Will the dimmer work with my LED bulbs?
With dimmable LED lamps, yes. Check the lamp packaging for the word dimmable before you order.
Can I mix a toggle, a dimmer and an outlet on one plate?
Yes. That is what the Build Your Own plate is for. Choose the plate size, then what each position does.
Which finish should I choose?
Brushed Brass reads warm and quiet, Aged Brass darker and softer, Matte Black with Brass sharp against pale walls. The sample kit lets you hold all three against your own wall.
Will the finish wear where I touch it?
The finish is on the brass itself, so it softens with use rather than peeling. Aged Brass is meant to darken further.
Do you offer trade pricing?
Yes. Interior designers, architects and builders can apply to the trade program for preferred pricing, samples and help planning full-room hardware schedules.
